Transpl Int, 28 March 2022

Current Trends in Organ Preservation Solutions for Pancreas Transplantation: A Single-Center Retrospective Study

www.frontiersin.orgJoana Ferrer-Fàbrega1,2*, www.frontiersin.orgEmma Folch-Puy3,2, www.frontiersin.orgJuan José Lozano4,5, www.frontiersin.orgPedro Ventura-Aguiar6,2, www.frontiersin.orgGabriel Cárdenas1, www.frontiersin.orgDavid Paredes7, www.frontiersin.orgÁngeles García-Criado8,2, www.frontiersin.orgJosep Antoni Bombí9, www.frontiersin.orgRocío García-Pérez1, www.frontiersin.orgMiguel Ángel López-Boado1, www.frontiersin.orgRamón Rull1, www.frontiersin.orgEnric Esmatjes10,2, www.frontiersin.orgMaria José Ricart6, www.frontiersin.orgFritz Diekmann6,2, www.frontiersin.orgConstantino Fondevila1,5,2, www.frontiersin.orgLaureano Fernández-Cruz1, www.frontiersin.orgJosep Fuster1,5,2 and www.frontiersin.orgJuan Carlos García-Valdecasas1,5,2
  • 1Hepatobiliopancreatic Surgery and Liver and Pancreatic Transplantation Unit, Clinic Institute of Digestive and Metabolic Diseases (ICMDiM), Hospital Clínic, University of Barcelona, Barcelona, Spain
  • 2August Pi i Sunyer Biomedical Research Institute (IDIBAPS), Barcelona, Spain
  • 3Experimental Pathology Department, Institut d’Investigacions Biomèdiques de Barcelona (IIBB), Consejo Superior de Investigaciones Científicas (CSIC), Barcelona, Spain
  • 4Bioinformatics Platform, Network for Biomedical Research in Hepatic and Digestive Diseases (CIBERehd), Barcelona, Spain
  • 5Network for Biomedical Research in Hepatic and Digestive Diseases (CIBERehd), Barcelona, Spain
  • 6Renal Transplant Unit, Nephrology and Kidney Transplant Department, Hospital Clínic, University of Barcelona, Barcelona, Spain
  • 7Donation and Transplant Coordination Unit, Hospital Clínic, University of Barcelona, Barcelona, Spain
  • 8Department of Radiology, Hospital Clínic, University of Barcelona, Barcelona, Spain
  • 9Department of Pathology, Hospital Clínic, University of Barcelona, Barcelona, Spain
  • 10Diabetes Unit, Department of Endocrinology and Nutrition, Hospital Clínic, University of Barcelona, Barcelona, Spain

Due to the high vulnerability of the pancreas to ischemia-reperfusion injury, choices regarding preservation solution markedly affect pancreas transplant success. A retrospective single-center analysis of 380 pancreas transplants (2000–2019) was performed to correlate current preservation solutions with transplant outcomes. Early graft failure requiring transplantectomy within 30 days post-transplant occurred in 7.5% for University of Wisconsin (UW) group (n = 267), 10.8% of Celsior (CS) group (n = 83), 28.5% of Histidine-Tryptophan-Ketoglutarate (HTK) group (n = 7), and none for Institut Georges Lopez-1 (IGL-1) group (n = 23). The most common causes of technical failures in this cohort included abdominal hemorrhage (8.4%); graft pancreatitis (3.7%); fluid collections (2.6%); intestinal complications (6.6%); and vascular thrombosis (20.5%). Although IGL-1 solution provided lower surgical complication rates, no significant differences were found between studied groups. Nevertheless, HTK solution was associated with elevated pancreatitis rates. The best graft survival was achieved at 1 year using UW and IGL-1, and at 3 and 5 years using IGL-1 (p = 0.017). There were no significant differences in patient survival after a median follow-up of 118.4 months. In this setting therefore, IGL-1 solution appears promising for perfusion and organ preservation in clinical pancreas transplantation, compared to other commonly used solutions.




For patients with diabetes mellitus (DM) type 1, pancreas transplantation (PTx) is the only therapeutic option capable of normalizing blood glucose and minimizing secondary complications of diabetes, resulting in an increase in the survival and an improved quality of life (1). According to data from the International Pancreas Transplant Registry, more than 56,000 PTx’s were carried out worldwide between the first operation in the 1960s and 2017 (2). In Spain, with 12 accredited centers, 2,006 PTx’s have been performed since the program started in 1983 (3-5).

The maintenance of organ viability from donation to transplantation is a decisive factor for the adequate function and survival of the graft, especially in organs such as the pancreas, which is highly susceptible to ischemic damage. Preservation has become a key challenge due to the increasing use of marginal donors, in whom the functionality of the organ is most affected (6,7).

In this scenario, four preservation solutions are currently in use for pancreas transplantation. University of Wisconsin (UW) solution has been considered for organ perfusion in abdominal organ transplantation since the late 80s (8). It features a potassium concentration that mimics the intracellular medium and uses hydroxyethyl starch (HES) as the oncotic agent. In contrast, Histidine-Tryptophan-Ketoglutarate (HTK) and Celsior (CS) solutions, which were originally designed for cardiac graft protection, have the advantage of a much lower viscosity, providing more rapid cooling and better washout during organ procurement. Meanwhile, Institut Georges Lopez 1 (IGL-1) preservation solution was introduced in the early 2000s for the maintenance of abdominal organs and, although clinical experience in PTx with this solution is limited, initial results have been promising (9). Its composition resembles that of UW, with inversed potassium/sodium contents and replaced HES [with a tendency to induce red blood cell aggregation (10)] with 35-kDa molecular-weight polyethylene glycol (PEG35), a neutral, water-soluble, non-toxic polymer that acts like a colloid (11).

At present there is no universal consensus regarding the optimal preservation solution in the setting of PTx albeit UW solution continues to be recognized as the “gold standard” (12). Considering that early technical failure remains the Achilles’ heel of pancreas transplantation, there is a growing need within the scientific community for new solutions with superior preservation properties and reduced side effects.

In recent years, the Pancreatic Transplant Unit at Hospital Clínic of Barcelona has routinely used IGL-1 as a preservation solution for PTx from its own donors. The aim of this study was to compare the effectiveness of the four currently in-use preservation solutions on the outcome of PTx regarding early pancreatic graft function as well as long-term patient and graft survival. Secondly, postoperative surgical complications were also evaluated, as well as their relation with ischemia-reperfusion injury.

Material and Methods

Study Design

Five hundred ninety-one consecutive pancreas transplants were performed at the Hospital Clínic of Barcelona from 1983 through to the end of 2019. A prospectively assembled database of all pancreas transplants from January 2000 to March 2019 was reviewed, i.e. since surgical technique and immunosuppression strategies were standardized. The patient cohort included 380 patients who underwent PTx: 312 (82.1%) simultaneous pancreas-kidney (SPK); 27 (7.1%) pancreas after kidney (PAK) and 3 (0.8%) pancreas transplant alone (PTA). In addition, 38 (10%) patients received a pancreas retransplantation. Data from this cohort were stratified into four groups according to the organ preservation solution employed (UW, CS, HTK and IGL-1). UW and CS were used throughout the whole period of analysis, HTK from January to December 2013 while IGL-1 has been in use from 2014 to the present.

This study protocol was approved by our institutional review board (HCB/2020/0499) and complied with the ethical standards of the Helsinki Declaration of 1975.

Donor Characteristics

Graft pancreas acceptance criteria was performed based on the consensus document of the National Transplant Organization described in 2005 and updated in 2018 (13). Donor analyzed characteristics included: age; gender; cause of death; body mass index (BMI); cold ischemia time (CIT); pre-procurement pancreas suitability score (PPASS); perfusion volume, and amylase/lipase levels.

During organ procurement, both abdominal aorta and portal vein cannulation (dual perfusion) were used to perfuse the organs (perfusion time 8–10 min). The perfusion volume differed depending on the surgeon criteria to obtain a clear effluent via vena cava. The standard, whole-pancreas graft included the entire pancreas and a duodenal segment.

Recipient Characteristics

The indications for PTx were patients with DM who met the inclusion criteria according to the protocol established in our institution (14). Venous systemic drainage was performed between graft portal vein and recipient vena cava or right iliac vein. Arterial supply for the pancreatic graft was done through the anastomosis of the recipient right iliac primitive artery to the graft superior mesenteric artery or the common iliac graft artery, depending on the backtable reconstruction (15). For exocrine secretion, enteric drainage was created “side-to-side”, either by duodeno-jejunostomy (from January 2000 to April 2016) or duodeno-duodenostomy anastomosis (from May 2016 to March 2019).

The demographic recipient factors included age; gender; BMI; DM type-1; time of DM evolution (DM vintage), and type and duration of dialysis (Dialysis vintage). In addition, surgical complications were defined according to the modified Clavien Dindo classification (16) as any postoperative event related to the procedure within the 90 days following the transplant. Postoperative hemorrhage was classified according to the definition of the International Study Group for Pancreatic Surgery (ISGPS) (17). As there was a lack of consensus regarding a clear definition of graft pancreatitis, it was considered the case when it was readily apparent that it had arisen intraoperatively from ischemia-reperfusion injury and its related-complications such as pancreatic abscesses, and peripancreatic fluid collections. Other entities were also considered such as sterile or infected abdominal fluid collections either diagnosed by ultrasound/abdominal computed tomography or evidenced by clinical symptoms. Intestinal complications included duodenum-related leaks and small-bowel obstruction.

Early pancreatic graft function was evaluated both by biochemical parameters (peak serum amylase and lipase levels in the first 48 h together with insulin requirements) and by clinical outcomes, including the need of transplantectomy within 30 days of transplantation.


Routine immunosuppression in SPK and PAK consisted of different regimens administered following the institutional protocol, which varied according to the date of transplant including monoclonal antibody (OKT3), anti-interleukin-2 monoclonal antibody (basiliximab), rabbit anti-human lymphocytes polyclonal antibodies (thymoglobulin) among others, as standard induction therapy. Maintenance immunosuppression was based on triple therapy with calcineurin inhibitor (cyclosporine A until 2005 vs. tacrolimus introduced in the late 90s), mycophenolate and steroids.

Anticoagulant Therapy and Antibiotic Prophylaxis

Our standard anticoagulation protocol included enoxaparin 20 mg every 12 h, starting 8-h post-surgery and maintained until patient discharge (in the absence of thrombotic/hemorrhagic complications), and aspirin 50 mg/d starting at 12-h post-surgery until discharge (100 mg/d).

Vancomycin plus third-generation cephalosporin (from 2000 to 2014) or ertapenem (from 2015 to 2019) were used as antibiotic prophylaxis in the perioperative period. Fungal prophylaxis with fluconazole was universally used in all recipients. Cytomegalovirus prophylaxis was provided by ganciclovir or valganciclovir, depending on glomerular filtration rates.

Statistical Analysis

Categorical variables are expressed as frequencies (%), percentages and continuous variables such as median and interquartile range (IQR). Categorical variables were analyzed by use of Fisher’s exact or χ2 test. Mann-Whitney U test or the Kruskal Wallis in the case of nonparametric distribution were used for the analysis of continuous variables. Due to the limited number of cases for HTK group, and the resulting bias that may arise in subgroup analysis, we have deemed it appropriate to provide a detailed description of the immediate post-transplant complications instead of including it for comparison with other groups.

The following variables have been included in the univariate and multivariate analysis as potential risk factors for early graft survival: donor demographics (age, gender, cause of death, body mass index, amylase and lipase values, and P-PASS); donor procurement factors (preservation solution, total perfusion volume, cold ischemia time); era of transplant (before and after 2010); recipient demographics (age, gender, body mass index, DM type, DM vintage, dialysis vintage, type of dialysis, transplant type, and induction therapy). Other factors related to surgical management and technique included were the type of arterial reconstruction in the backtable, the type of vascular (arterial and venous) anastomosis and the intestinal anastomosis technique used in the recipient.

Patient and graft survival were assessed using Kaplan–Meier curves and compared with the log-rank test (LR) and Breslow. Numeric covariates were dichotomized by their median. Patient survival was calculated from the time of transplant to death or the end of follow-up. Pancreas graft survival was calculated from the time of transplant until any of the following: the need for graft removal; the return to permanent insulin therapy dependency; retransplant or death/end of follow-up with a functioning graft. p values of less than 0.05 were considered statistically significant. Significant covariates were subjected to multivariate cox regression analysis.

Statistical calculations were made using SPSS for Windows software (IBM SPSS Statistics version 20.0, 1989–1995; Chicago, IL) and R statistical software (R Core Team (2017). R: A language and environment for statistical computing. R Foundation for Statistical Computing, Vienna, Austria. URL https://www.R-project.org/).


Demographic Profile

A total 380 PTx’s were performed in our center with the use of four different preservation solutions, which differed in terms of their chemical composition (Table 1). Some 267 (70.3%) patients were perfused with UW, 83 (21.8%) with CS, 7 (1.8%) with HTK, and 23 (6.1%) with IGL-1. HTK was introduced in 2013 but was associated with a high and unexpected incidence of graft pancreatitis, prompting us to cease using it and convert to IGL-1.


TABLE 1. Components and function of the various preservation solutions compared in the study.

The four groups had similar characteristics regarding donors as shown in Table 2. HTK and CS groups presented older donor age as compared to IGL-1 and UW (p < 0.05). IGL-1 and HTK exhibited shorter CIT (p < 0.05), with significantly larger volumes of perfusion solution as compared to CS and UW (p < 0.05). The preservation solutions did not differ regarding gender, cause of death, BMI, PPASS and the levels of lipase. Nevertheless, in relation to donor amylase levels, HTK group presented lower values compared to others.


TABLE 2. Relationship between preservation solutions and clinicopathological features of donors.

Recipient demographics showed no significant differences with respect to gender, BMI, dialysis vintage, type of dialysis and type of transplant (Table 3). By contrast, recipients in the IGL-1 group were older compared with UW group (p = 0.003) and had the lower proportion of patients with DM I compared to others. Thymoglobulin was the most frequently used drug as induction therapy for CS, HTK and IGL-1 groups.


TABLE 3. Relationship between preservation solutions and clinicopathological features of recipients.

Surgical Technique

There were, by far, more SPK compared to PAK and PTA in the UW, CS and IGL-1 group (Table 3). Patients transplanted with HTK solution corresponded solely to SPK technique.

For the vascular reconstruction of the pancreatic graft during backtable, arterial anastomosis between the splenic artery and the superior mesenteric artery was performed in the majority of cases for all analyzed groups. Regarding enteric exocrine drainage procedures, most UW, CS and HTK-preserved grafts were transplanted intraperitoneally (duodeno-jejunostomy), except for IGL-1, for which duodeno-duodenostomy technique was used in 69.6% of cases.

Transplant Outcomes

Early Graft Function

On the immediate postoperative days (24h–48 h), serum amylase levels were the following: UW, 198 (IQR 127–341) IU/L; CS, 148 (IQR 100–295) IU/L; HTK, 206 (IQR 62–2821.5) IU/L and IGL-1, 193 (IQR 89–375) IU/L. Statistical differences were found between UW and CS (Figure 1A). The serum lipase levels were as follows: UW, 212 (IQR 114–420) IU/L; CS, 135 (IQR 80.5–350) IU/L; HTK, 76 (IQR 74.5–1738) IU/L and IGL-1, 136 (IQR 66–343.66) IU/L. The highest values for lipase peak were observed in the UW group, compared with CS and IGL-1 (Figure 1B). Despite the fact that those patients that required immediate transplantectomy were excluded from the amylase/lipase postoperative analysis, functioning pancreatic allografts perfused and subsequently preserved in HTK solution had an elevated serum amylase and lipase peak as demonstrated by IQR-75% compared to those preserved using other solutions. Nevertheless, the differences were not statistically significant.

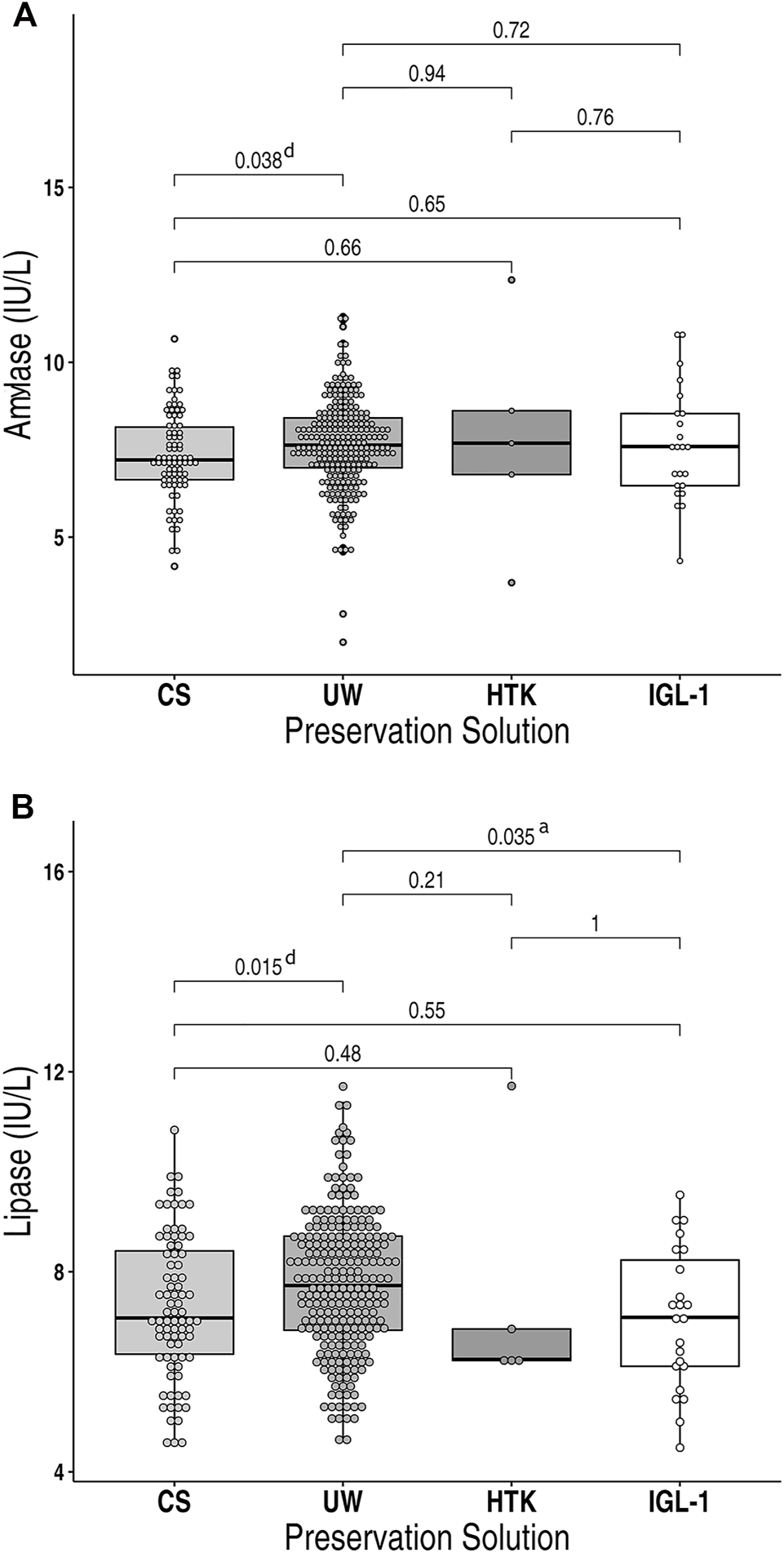

FIGURE 1. Box Plot showing (A) post-transplant serum amylase levels and (B) post-transplant serum lipase levels in recipients of pancreas allografts preserved in either CS, UW, HTK or IGL-1 preservation solution. Measured values were converted into logarithmic values. Boxes represent the interquartile ranges and whiskers extend to the minimum and maximum values. The median values are shown within the boxes. UW, University of Wisconsin; CS, Celsior; HTK, Histidine-Tryptophan-Ketoglutarate; IGL-1, Institut Georges Lopez-1. aIGL-1 vs. UW; dCS vs. UW.

Interestingly, a total of 30 patients presented kidney delayed graft function (DGF): UW (7.1%); CS (7.2%), HTK (57.1%); IGL-1 (4.3%), (p < 0.001, HTK vs. others). Hemodialysis was required in 15 of them in the immediate postoperative period, with progressive normalization of renal function at the moment of discharge.

Graft Transplantectomy

Early graft failure requiring transplantectomy within 30 days post-transplant occurred in 31 (8.1%) patients (Figure 2A), being more frequent in the case of HTK solution (28.5%). None of the IGL-1-preserved allografts required transplantectomy before 30 days. Vascular thrombosis was the main cause of early graft failure in UW and CS-preserved allografts, while graft pancreatitis was the leading cause of pancreatic failure in HTK-preserved allografts. Figure 2B illustrates the appearance of one of the HTK-perfused grafts, presenting an immediate severe macroscopic hemorrhagic reperfusion pancreatitis, and confirmed by histopathological data (Figures 2C,D).

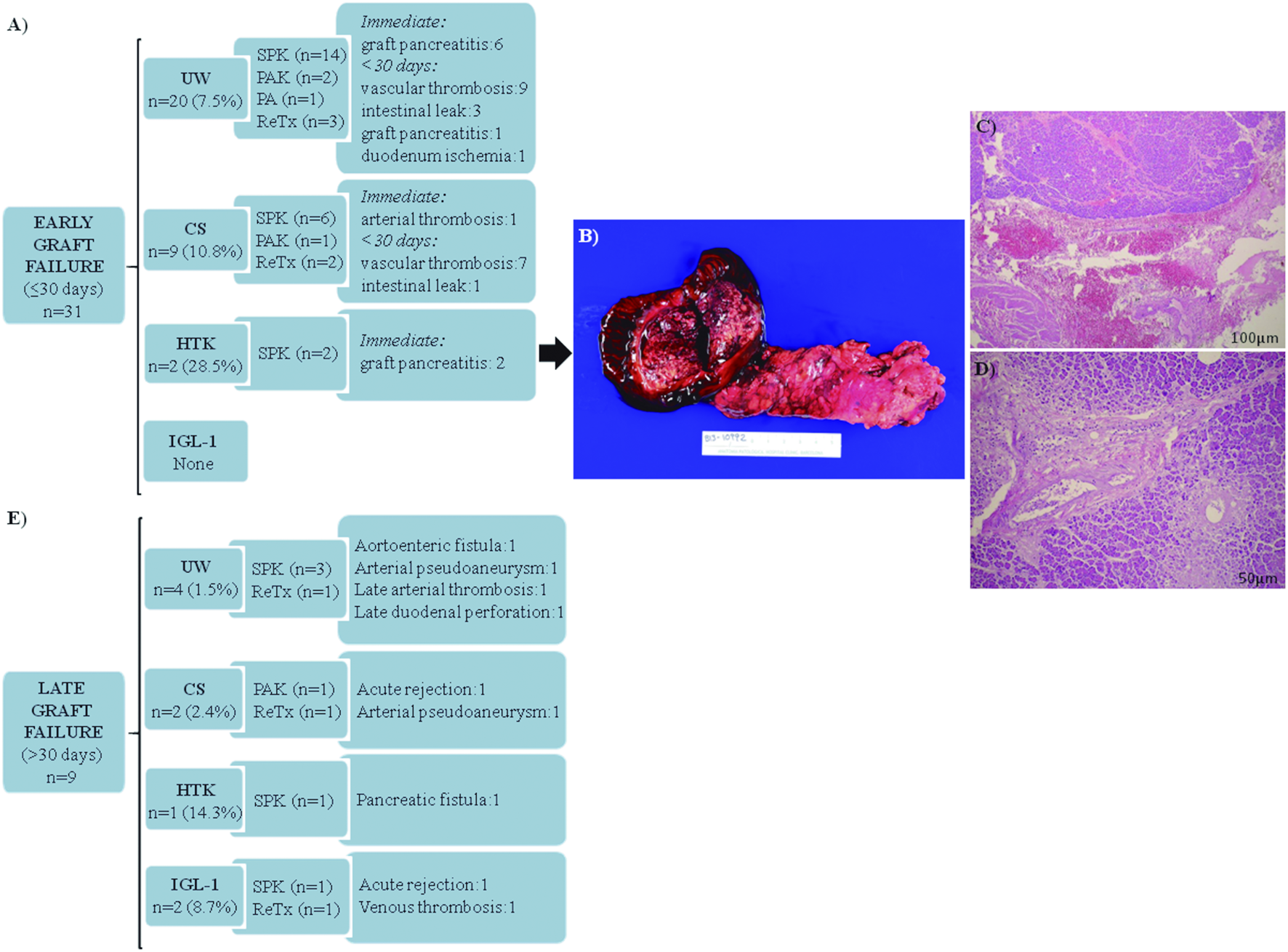

FIGURE 2. Pancreas graft failure requiring early (≤30 days) and late (>30 days) transplantectomy in transplanted patients. (A) Main causes of transplantectomy within 30 days after pancreas transplantation. Vascular thrombosis for UW group includes: venous thrombosis (n = 5); arterial thrombosis (n = 3); and venous + arterial thrombosis (n = 1). Vascular thrombosis for the CS group includes: venous thrombosis (n = 4); venous + arterial thrombosis (n = 3). (B) Macroscopic aspect of the graft perfused with HTK with areas of hemorrhage and necrosis in pancreatic tissue and duodenum. (C) Extensive hemorrhagic areas affecting the pancreatic parenchyma and peripancreatic soft tissue indicated by asterisks (H&E, scale bar 100 μm). (D) Pancreatic parenchyma with ischemic necrosis indicated by asterisks (H&E, scale bar 50 μm). (E) Main causes of transplantectomy after 30 days of pancreas transplantation. UW, University of Wisconsin; CS, Celsior; HTK, Histidine-Tryptophan-Ketoglutarate; IGL-1, Institut Georges Lopez-1; SPK, Simultaneous Pancreas-Kidney; PAK, Pancreas After Kidney; PA, Pancreas Transplant Alone; DM, Diabetes Mellitus; ReTx, Retransplant. H&E, Hematoxylin and eosin.

Late causes of graft failure requiring pancreas transplantectomy beyond 30-day post-transplant accounted for 2.4% of the cases (Figure 2E).

Surgical Complications After Transplant

Technical failures in the total cohort amounted to 37.4% (n = 142). The Clavien-Dindo grading system for the classification of surgical complications was as follow: grade I (5.3%), grade II (6%), grade IIIa (3.9%), grade IIIb (20.5%), grade IVa (1.6%).

Focusing on the most relevant postoperative events, as depicted in Table 4, abdominal hemorrhage was identified in 8.4% of the cases (Grade A ISGPS (3.1%) and Grade B ISGPS (96.9%)), being similar between groups, except for IGL-1 group, which had none.


TABLE 4. Surgical postoperative complications.

In most cases, a surgical reintervention was required due to: hemoperitoneum (n = 24); intra-abdominal hematoma (n = 3); and subcutaneous hemorrhage (n = 1). Graft pancreatitis was diagnosed in a total of 14 patients. There were numerical differences based on the preservation solution type (p < 0.001), with a significantly high rate for the HTK group (43%, thymoglobulin (n = 2), basiliximab (n = 1)). Regarding the whole series, some 8 cases required an immediate transplantectomy because of a severe graft necro-hemorrhagic pancreatitis after reperfusion (Figures 2A–D). In those situations, the surgeon considered the graft not viable after checking the tightness and absence of thrombi of the vascular anastomoses. Another HTK case presented a less severe heterogeneous reperfusion with areas of intra-parenchymal hemorrhage (amylase/lipase at 24 h: 5250/3369 IU/L). In that situation, it was decided to salvage the graft, although a pancreas transplantectomy was mandatory 7 months later because of an infected persistent pancreatic fistula. The remaining 5 cases of pancreatitis, presented with a median 24 h serum values of amylase and lipase of 1017 IU/L (796.25–2007) and 776.5 IU/L (495.1–1968.7) respectively, evolved as peripancreatic fluid collection, requiring relaparotomy (n = 4) at a median of 12 days (6.5–15) post-transplant and percutaneous abscess drainage (n = 1). Other intra-abdominal fluid collections were diagnosed in 10 patients, without impact on graft survival. A relaparotomy was needed in half of them, performed in most cases when the patient was readmitted after discharge because of fever and abdominal pain at a median of 28 days (18–43.5) after transplant. Intestinal complications (6.6%) included post-transplant duodenal-enteric leaks and those related to small-bowel obstruction. A total of 5 patients required early transplantectomy because of: anastomotic leak (n = 2); a leak of the duodenal stump site (n = 2), and ischemia of the duodenum (n = 1). The UW, CS and IGL-1 preservation solutions presented similar rates of vascular thrombosis (venous (77%), arterial (6.4%), both (16.6%). Note that, in a total of 25 out of 78 patients, surgery was applied as treatment. Other therapeutic options used for thrombosed pancreas grafts are also described in Table 4.

Patient and Graft Survival

After a median follow-up of 118.4 months (IQR: 63.2–168.9), overall patient survival for the whole cohort at 1, 3, and 5 years was 98.4%, 96%, and 95%, respectively. Patient survival rates at 1, 3, and 5 years for the studied groups are depicted in Figure 3A, with no significant differences between them (p = 0.692).

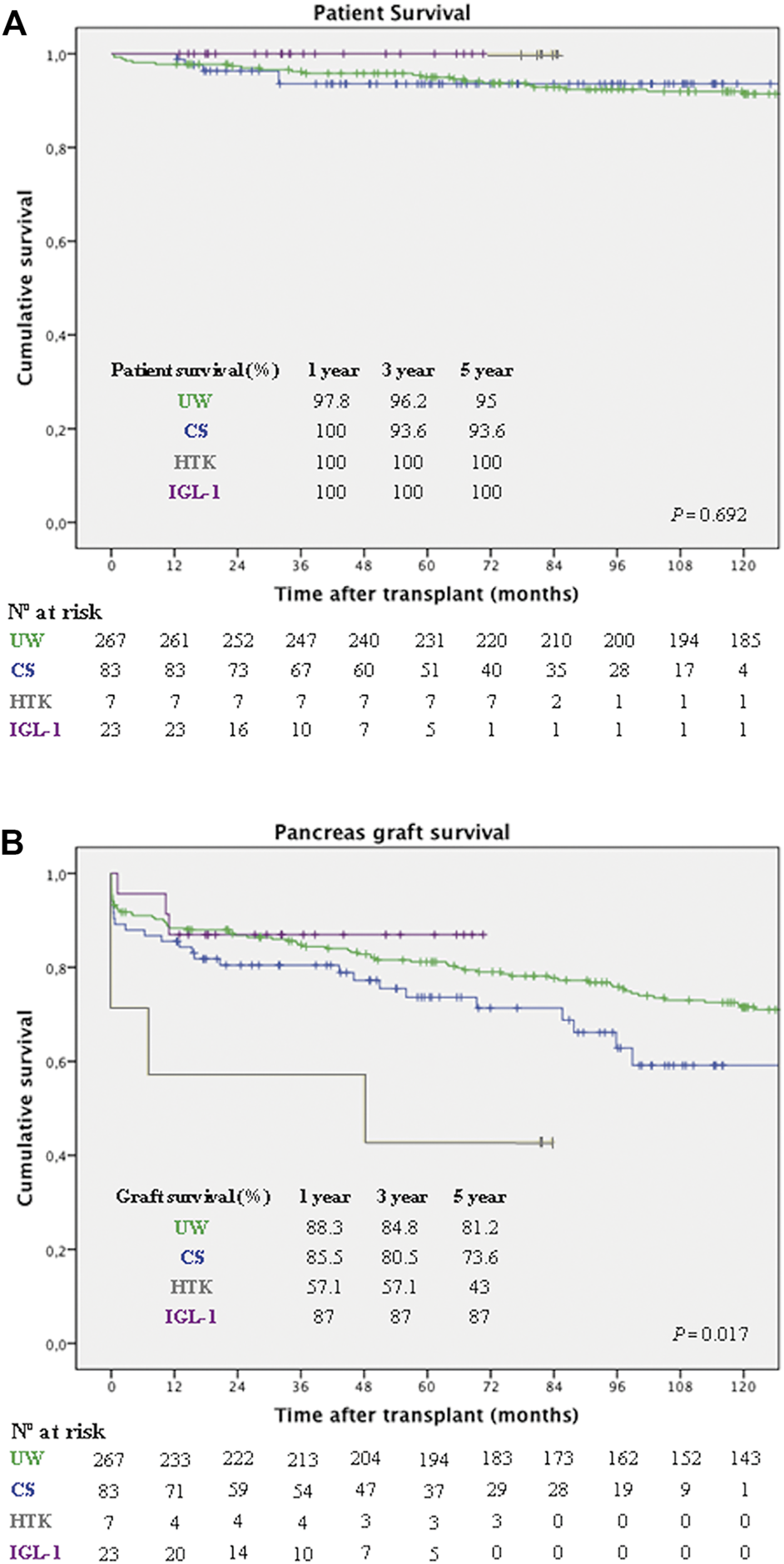

FIGURE 3. Pancreas graft and patient survival in 380 consecutive pancreas transplants according to preservation solution. (A) Patient survival rates at 1, 3, and 5 years were: 97.8%, 96.2%, and 95%, respectively for the UW group (green line); 100%, 93.6%, and 93.6%, respectively for the CS group (blue line); 100% for the HTK group (grey line) and 100% for the IGL-1 group (purple line), with no significant differences (p = 0.692, LR). (B) Death-censored pancreas graft survival rates at 1, 3, and 5 years were: 88.3%, 84.8%, and 81.2%, respectively for the UW group (green line); 85.5%, 80.5%, and 73.6%, respectively for the CS group (blue line); 57.1%, 57.1%, and 43%, respectively for the HTK (grey line) group; and 87%, 87%, and 87%, respectively in the IGL-1 group (purple line) (p = 0.017, LR). UW, University of Wisconsin; CS, Celsior; HTK, Histidine-Tryptophan-Ketoglutarate; IGL-1, Institut Georges Lopez-1; LR, Log-rank test.

Overall death-censored pancreas graft survival for the whole cohort at 1, 3, and 5 years was 87.1%, 83.4%, and 79%, respectively. Figure 3B represents the pancreas graft survival rates at 1, 3, and 5 years for the different preservation solution groups. Overall UW, IGL-1 and CS were associated with better pancreas graft survival, compared to HTK (p = 0.017).

Regarding pre-procedure variables related to donor and recipient, a significantly increased risk of graft loss on univariate analysis was associated with the following: CIT (>10 h), [hazard ratio (HR) 1.51, 95% CI 1.02–2.23; p = 0.035], HTK as preservation solution (HR 3.48, 95% CI 1.27–9.52; p = 0.009), pretransplant creatinine (>5.9 mg/dl) (HR 0.66, 95% CI 0.44–0.98; p = 0.039), type of transplant (other than SPK) (HR 2.12, 95% CI 1.38–3.25; p < 0.001), recipient gender (female) (HR 1.52, 95% CI 1.03–2.23; p = 0.031). Other variables with no statistical significance yet presented a tendency to influence graft survival were: donor BMI >27 kg/m2 (p = 0.057) and donor cause death other than trauma (p = 0.06). In a multivariate Cox regression model for graft survival, the variables associated with an increased risk for graft failure were: type of transplant (other than SPK) (HR 5.46 CI 1.63–18.28; p = 0.005) and recipient gender (female) (HR 1.97, 95% CI 1.00–3.86; p = 0.04).


Of all solid organ transplant types, pancreas transplants are most susceptible to non-immunologic failure, with a reported graft loss rate of 5%–20% during the first year after transplantation (18-20). Because of the high vulnerability of the pancreas, an appropriate preservation solution could make a difference on graft and patient outcome. However, there is no universal consensus concerning the optimal preservation fluid in PTx (12).

Herein, we present the first retrospective single-center study comparing the effects of the four most commonly used preservation solutions in PTx, i.e. UW, CS, HTK, and IGL-1, on early pancreatic graft function as well as long-term patient and graft survival. By analyzing a large cohort of pancreas transplants in a 20–year period, this study shows that, although similar rates of graft survival were observed during the first year when comparing IGL-1, CS and UW, better results for IGL-1 were observed over the long term. Conversely, the HTK-preserved pancreas had the lowest graft survival in comparison to the other preservation solutions employed, supporting the findings of Hameed AM et al. (12) when comparing UW, HTK and CS preservation solution in a meta-analysis study.

Of note, out of the total 31 cases with early graft failure requiring transplantectomy within 30 days post-transplant, none were associated with the use of IGL-1 preservation solution. However, even though this result seems promising, they need to be interpreted cautiously because of the small sample size of IGL-1 cohort in comparison with UW or CS. When analyzing the intraoperative events, severe reperfusion pancreatitis with immediate graft removal was present in 28.5% of preserved-graft with HTK, a higher percentage when compared to other solutions. Clinical experience with HTK solution still generates controversy. It is known that its low viscosity necessitates larger solution volumes, as initially recommended by the manufacturers. However, it has been demonstrated that this factor may also be detrimental for optimal pancreas preservation, and that abdominal organs can be adequately preserved with a total volume of 5–7 L of HTK (21). In the majority of clinical studies, the HTK-flushed grafts had a higher risk of graft loss due to acute pancreatitis and thrombosis when experiencing ischemic times in excess of 12 h (22-24). In our cohort, the median of HTK-perfused solution used was 7 L. Despite the fact that HTK was used in grafts with shorter CIT, and that no changes were made in organ recovery practices, transplant techniques, or transplanting surgeons, a significant increase in the rate of pancreatitis in recipients was observed (p < 0.001). These findings are in contrast to a larger series published by Fridell et al. (25), who found no differences in outcomes of 308 pancreas transplants with the use of UW and HTK, suggesting that the observed differences in other studies may have been attributed to long ischemic times (19) and larger flush volumes.

A study from Ngheim et al. suggested that dual perfusion may alter pancreatic function during pancreas procurement in comparison to the aortic-only vascular perfusion (26). The authors found that the 6 pancreas retrieved by dual aortic and portal flush had higher serum amylase and lipase levels and lower levels of urine bicarbonate and pH. However, due to the lack of larger studies, both single and dual perfusion are currently considered as effective methods when procuring the pancreas for transplantation (12, 27). The impact of this factor could not be evaluated in the present series as aortic-only perfusion was not investigated. However, this method could be a source of future research to assess whether or not dual perfusion is a possible risk factor for increased graft injury resulting from venous congestion and graft edema.

Although vascular thrombosis has been shown to be a risk factor for graft loss (28-34), in this series no differences have been observed in relation to the preservation solution used. The same applies to intestinal-related morbidity.

Another important consideration when analyzing the results of our series is the quality of the pancreatic donor. Examination of the records showed no statistically significant differences regarding donor characteristics and preservation solutions used, with the exception of older pancreatic grafts in the HTK and CS groups, and longer CIT for UW and CS cases. Studied groups were also similar regarding recipient characteristics, with the exception of older patients for IGL-1 group, and longer DM vintage for HTK group.

No active interventions among pre-procedure factors with influence on graft survival, such as the recipient gender or type of transplant, are possible as they are unchangeable variables. Moreover, and taking into account the heterogeneous population and the long-time study period, neither the era of study (before and after 2010, as it was the midpoint of the period (2000–2019)), the type of vascular reconstruction nor the intestinal anastomosis had an impact on the early graft functioning.

In general, our findings are consistent with the scant published information in PTx using IGL-1. At the clinical level, one preliminary study suggests that IGL-1 is a safe preservation solution since it provides up to 17 h of cold ischemia. The five human pancreases preserved with IGL-1 acquired normal function immediately after reperfusion, without loss of the graft (35). Similar results were observed in a more recent study comprising a series of 47 consecutive PTx (36). Conversely, IGL-1 has been proven to be equivalent to UW or CS solutions for pancreas perfusion and cold storage before islet transplantation (37). Nevertheless, in a model of PTx in pigs, IGL-1 offered greater protection in membrane fluidity after reperfusion (38).

To the best of our knowledge, this is the only study exploring the effect of the four preservation solutions currently used for clinical PTx. We are aware that the suboptimal number of patients (mainly in the HTK group) limit the conclusions of the study, even though this factor is mitigated when evaluating the results from the point of view of “intention to treat”. A low number of HTK-flushed pancreases has arisen due to an unexpected increase in the rate of immediate transplantectomy due to acute pancreatitis following reperfusion, as the latter is also an independent risk factor for impaired graft survival. This fact limited HTK’s use in PTx and did not allow us to recruit an optimal number of cases for comparison with a suitable sample size. Furthermore, no hard conclusion could be obtained on the influence of induction therapy on technical failure as two out of the three cases with adverse effect were treated with thymoglobulin, which has potential broad anti-inflammatory properties that have been shown to reduce ischemia-reperfusion injury (39, 40). A long period time study carries with it inherent improvements in perioperative patient care, surgical technique and postoperative management, but the present series transplant era in question did not have statistically significant influence on the graft outcomes. Finally, the fact that surgical technique was changed in 2016 to duodenoduodenostomy does not affect immediate reperfusion injury rates, as vascular anastomoses were performed with the same technique throughout the time period in question. Despite numerous techniques to minimize exocrine pancreatic drainage complications, no universal technique has been standardized (41,42). To date, it is unclear whether duodenojejunostomy or duodenoduodenostomy provides the best long-term survival of the grafts (43). A prospective multicentre registry analysis may resolve this.

In conclusion, the fruits of this study indicate a trend towards a better graft and patient survival among IGL-1 recipients. Besides, IGL-1 composition is similar to that of the UW solution, currently considered as the “gold standard” in the reduction ischemia-reperfusion injury of the pancreas. Hence, successful PTx can be safely performed using IGL-1 solution. Further multicenter studies are still required to identify the “holy grail” of preservation solutions, especially in the current scenario of using marginal donors, including donors following circulatory death, in which the graft is exposed to a warm ischemia insult before cold storage, raising susceptibility to graft dysfunction.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.

Ethics Statement

The studies involving human participants were reviewed and approved by the Hospital Clinic of Barcelona Institutional Review Board (HCB/2020/0499). The patients/participants provided their written informed consent to participate in this study.

Author Contributions

JF-F, EF-P, JL, JF, and JG-V conceived and designed the study. JF-F, EF-P, PV-A, GC, DP, AG-C, JB, RG-P, ML-B, RR, EE, MR, FD, CF, LF-C, JF, and JG-V contributed to the acquisition of the data or analysis and interpretation of the data. JF-F, EF-P, JL, JF, and JG-V drafted the manuscript. All authors revised the manuscript critically for essential intellectual content. All authors read and approved the final version to be published.


This work was supported by grant from Ministerio de Ciencia, Innovación y Universidades, reference PID2019-104130RB-I00 awarded to EF-P.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.


We thank Steve Illing, Cambridge RSA CELTA, for English language assistance.


BMI, Body Mass Index; CIT, Cold Ischemia Time; CS Celsior; DGF, Delayed Graft Function; DM, Diabetes Mellitus; HTK, Histidine-Tryptophan-Ketoglutarate; HR, Hazard Ratio; IGL-1, Institut Georges Lopez-1; IQR, Interquartile Range; ISGPS, International Study Group for Pancreatic Surgery; LR, Log-rank Test; PAK, Pancreas After Kidney; PPASS, Pre-Procurement Pancreas Suitability Score; PTA, Pancreas Transplant Alone; PTx, Pancreas transplantation; SPK, Simultaneous Pancreas-Kidney; UW, University of Wisconsin.


1. Larsen, JL. Pancreas Transplantation: Indications and Consequences. Endocr Rev (2004). 25:919–46. doi:10.1210/er.2002-0036

PubMed Abstract | CrossRef Full Text | Google Scholar

2. Stratta, RJ, Gruessner, AC, and Gruessner, RW. The Past, Present, and Future of Pancreas Transplantation for Diabetes Mellitus. Endocrinol Diabetes Metab J (2018). 2:2–9.

Google Scholar

3. Casanova, D, and en nombre de Grupo Español de Trasplante de Páncreas, . Trasplante de páncreas: 50 años de experiencia. Cirugía Española (2017). 95:254–60. doi:10.1016/j.ciresp.2017.02.005

CrossRef Full Text | Google Scholar

4.Actividad de donación y trasplante pancreático. (2020). España 2020. ONT (Organización Nacional de Trasplantes). Available at: http://www.ont.es/infesp/Paginas/Memorias.aspx. Accessed May 13, 2020.

Google Scholar

5. Gil-Vernet, JM, Fernández-Cruz, L, Caralps, A, Andreu, J, and Figuerola, D. Whole Organ and Pancreaticoureterostomy in Clinical Pancreas Transplantation. Transpl Proc (1985). 17:2019–22.

Google Scholar

6. Mittal, S, Gilbert, J, and Friend, PJ. Donors after Circulatory Death Pancreas Transplantation. Curr Opin Organ Transpl (2017). 22:372–6. doi:10.1097/mot.0000000000000437

CrossRef Full Text | Google Scholar

7. Kopp, WH, Lam, HD, Schaapherder, AFM, Huurman, VAL, van der Boog, PJM, de Koning, EJP, et al. Pancreas Transplantation with Grafts from Donors Deceased after Circulatory Death. Transplantation (2018). 102:333–9. doi:10.1097/tp.0000000000001940

PubMed Abstract | CrossRef Full Text | Google Scholar

8. Parsons, RF, and Guarrera, JV. Preservation Solutions for Static Cold Storage of Abdominal Allografts. Curr Opin Organ Transpl (2014). 19:100–7. doi:10.1097/mot.0000000000000063

CrossRef Full Text | Google Scholar

9. Habran, M, De Beule, J, and Jochmans, I. IGL-1 Preservation Solution in Kidney and Pancreas Transplantation: A Systematic Review. PLoS One (2020). 15:e0231019. doi:10.1371/journal.pone.0231019

PubMed Abstract | CrossRef Full Text | Google Scholar

10. Morariu, AM, Vd Plaats, A, V Oeveren, W, ʼt Hart, NA, Leuvenink, HGD, Graaff, R, et al. Hyperaggregating Effect of Hydroxyethyl Starch Components and University of Wisconsin Solution on Human Red Blood Cells. Transplantation (2003). 76:37–43. doi:10.1097/01.tp.0000068044.84652.9f

PubMed Abstract | CrossRef Full Text | Google Scholar

11. Pasut, G, Panisello, A, Folch-Puy, E, Lopez, A, Castro-Benítez, C, Calvo, M, et al. Polyethylene Glycols: an Effective Strategy for Limiting Liver Ischemia Reperfusion Injury. Wjg (2016). 22:6501–8. doi:10.3748/wjg.v22.i28.6501

PubMed Abstract | CrossRef Full Text | Google Scholar

12. Hameed, AM, Wong, G, Laurence, JM, Lam, VWT, Pleass, HC, and Hawthorne, WJ. A Systematic Review and Meta-Analysis of Cold In Situ Perfusion and Preservation for Pancreas Transplantation. Hpb (2017). 19:933–43. doi:10.1016/j.hpb.2017.07.012

PubMed Abstract | CrossRef Full Text | Google Scholar

13.Organización Nacional de Trasplantes.Documento de consenso sobre criterios de selección de donante y receptor en trasplante de páncreas. Grupo Español de Trasplante de Páncreas. (2018). Available at: http://www.ont.es/infesp/DocumentosDeConsenso/Forms/AllItems.aspx (Accessed March 13, 2021).

Google Scholar

14. Ferrer Fàbrega, J, and Ricart, MJ. Indicaciones y contraindicaciones del trasplante de páncreas-riñón y del trasplante de páncreas aislado. Selección del candidato a trasplante. In: A Valdivieso, editor. Guía de Trasplantes de órganos abdominales. Madrid: Arán (2017). p. 333–41. Chapter 24.

Google Scholar

15. Fernández-Cruz, L, Astudillo, E, and Sanfey, H. Combined Whole Pancreas and Liver Retrieval: a New Technique for Arterial Reconstruction of the Pancreas Graft. Br J Surg (1992). 79:239–40.

PubMed Abstract | Google Scholar

16. Clavien, PA, Barkun, J, de Oliveira, ML, Vauthey, JN, Dindo, D, Schulick, RD, et al. The Clavien-Dindo Classification of Surgical Complications. Ann Surg (2009). 250:187–96. doi:10.1097/sla.0b013e3181b13ca2

PubMed Abstract | CrossRef Full Text | Google Scholar

17. Wente, MN, Veit, JA, Bassi, C, Dervenis, C, Fingerhut, A, Gouma, DJ, et al. Postpancreatectomy Hemorrhage (PPH)-An International Study Group of Pancreatic Surgery (ISGPS) Definition. Surgery (2007). 142:20–5. doi:10.1016/j.surg.2007.02.001

PubMed Abstract | CrossRef Full Text | Google Scholar

18. Morgan, TA, Smith-Bindman, R, Harbell, J, Kornak, J, Stock, PG, and Feldstein, VA. US Findings in Patients at Risk for Pancreas Transplant Failure. Radiology (2016). 280:281–9. doi:10.1148/radiol.2015150437

PubMed Abstract | CrossRef Full Text | Google Scholar

19. Humar, A, Kandaswamy, R, Drangstveit, MB, Parr, E, Gruessner, AG, and Sutherland, DER. Prolonged Preservation Increases Surgical Complications after Pancreas Transplants. Surgery (2000). 127:545–51. doi:10.1067/msy.2000.104742

PubMed Abstract | CrossRef Full Text | Google Scholar

20. Troppmann, C. Complications after Pancreas Transplantation. Curr Opin Organ Transplant (2010). 15(1):112–8. doi:10.1097/mot.0b013e3283355349

PubMed Abstract | CrossRef Full Text | Google Scholar

21. Alonso, D, Dunn, TB, Rigley, T, Skorupa, JY, Schriner, ME, Wrenshall, LE, et al. Increased Pancreatitis in Allografts Flushed with Histidine-Tryptophan-Ketoglutarate Solution: a Cautionary Tale. Am J Transpl (2008). 8:1942–5. doi:10.1111/j.1600-6143.2008.02312.x

CrossRef Full Text | Google Scholar

22. Potdar, S, Malek, S, Eghtesad, B, Shapiro, R, Basu, A, Patel, K, et al. Initial Experience Using Histidine-Tryptophan-Ketoglutarate Solution in Clinical Pancreas Transplantation*. Clin Transpl (2004). 18:661–5. doi:10.1111/j.1399-0012.2004.00262.x

CrossRef Full Text | Google Scholar

23. Englesbe, MJ, Moyer, A, Kim, DY, Granger, DK, Pietroski, R, Yoshida, A, et al. Early Pancreas Transplant Outcomes with Histidine-Tryptophan-Ketoglutarate Preservation: a Multicenter Study. Transplantation (2006). 82:136–9. doi:10.1097/01.tp.0000225764.21343.e3

PubMed Abstract | CrossRef Full Text | Google Scholar

24. Stewart, ZA, Cameron, AM, Singer, AL, Dagher, NN, Montgomery, RA, and Segev, DL. Histidine-tryptophan-ketoglutarate (HTK) Is Associated with Reduced Graft Survival in Pancreas Transplantation. Am J Transpl (2009). 9:217–21. doi:10.1111/j.1600-6143.2008.02449.x

CrossRef Full Text | Google Scholar

25. Fridell, JA, Mangus, RS, and Powelson, JA. Histidine-tryptophan-ketoglutarate for Pancreas Allograft Preservation: the Indiana University Experience. Am J Transpl (2010). 10:1284–9. doi:10.1111/j.1600-6143.2010.03095.x

PubMed Abstract | CrossRef Full Text | Google Scholar

26. Nghiem, DD, and Cottington, EM. Pancreatic Flush Injury in Combined Pancreas-Liver Recovery. Transpl Int (1992). 5:19–22. doi:10.1111/j.1432-2277.1992.tb01717.x

PubMed Abstract | CrossRef Full Text | Google Scholar

27. Keutgen, XM, and Petrowsky, H. Procurement for Visceral Organ Transplantation. Curr Opin Organ Transpl (2014). 19(2):92–9. doi:10.1097/mot.0000000000000066

CrossRef Full Text | Google Scholar

28. Ramessur Chandran, S, Kanellis, J, Polkinghorne, KR, Saunder, AC, and Mulley, WR. Early Pancreas Allograft Thrombosis. Clin Transpl (2013). 27:410–6. doi:10.1111/ctr.12105

CrossRef Full Text | Google Scholar

29. Blundell, J, Shahrestani, S, Lendzion, R, Pleass, HJ, and Hawthorne, WJ. Risk Factors for Early Pancreatic Allograft Thrombosis Following Simultaneous Pancreas-Kidney Transplantation: A Systematic Review. Clin Appl Thromb Hemost (2020). 26:1076029620942589–14. doi:10.1177/1076029620942589

PubMed Abstract | CrossRef Full Text | Google Scholar

30. Cantarovich, D, Guillen-Gueguin, C, and Le Borgne, F. Pancreas Transplantation Results Are Not More Progressing and Require Significant Innovations. Transplantation (2016). 100(7 Suppl. 1):S10. doi:10.1097/tp.0000000000001382

CrossRef Full Text | Google Scholar

31. Gruessner, AC, and Gruessner, RWG. Pancreas Transplantation of US and Non-US Cases from 2005 to 2014 as Reported to the United Network for Organ Sharing (UNOS) and the International Pancreas Transplant Registry (IPTR). Rev Diabet Stud (2016). 13(1):35–58. doi:10.1900/rds.2016.13.35

PubMed Abstract | CrossRef Full Text | Google Scholar

32. Humar, A, Ramcharan, T, Kandaswamy, R, Gruessner, RWG, Gruessner, AC, and Sutherland, DER. Technical Failures after Pancreas Transplants: Why Grafts Fail and the Risk Factors-A Multivariate Analysis. Transplantation (2004). 78(8):1188–92. doi:10.1097/01.tp.0000137198.09182.a2

PubMed Abstract | CrossRef Full Text | Google Scholar

33. Grewal, HP, Garland, L, Novak, K, Gaber, L, Tolley, EA, and Gaber, AO. Risk Factors for Postimplantation Pancreatitis and Pancreatic Thrombosis in Pancreas Transplant Recipients. Transplantation (1993). 56(3):609–12. doi:10.1097/00007890-199309000-00021

PubMed Abstract | CrossRef Full Text | Google Scholar

34. Boggi, U, Vistoli, F, Andres, A, Arbogast, HP, Badet, L, Baronti, W, et al. First World Consensus Conference on Pancreas Transplantation: Part II - Recommendations. Am J Transpl (2021). 3:17–59. Online ahead of print. doi:10.1111/ajt.16750

CrossRef Full Text | Google Scholar

35. Chedid, MF, Grezzana-Filho, TJM, Montenegro, RM, Leipnitz, I, Hadi, RA, Chedid, AD, et al. First Report of Human Pancreas Transplantation Using IGL-1 Preservation Solution. Transplantation (2016). 100:e46–e47. doi:10.1097/tp.0000000000001242

PubMed Abstract | CrossRef Full Text | Google Scholar

36. Igreja, MR, Wiederkehr, JC, Wiederkehr, BA, Maykon Massutti, A, and de Aguiar Wiederkehr, H. Use of Georges Lopez Institute Preservation Solution IGL-1 in Pancreas Transplantation: A Series of 47 Cases. Transplant Proc (2018). 50:702–4. doi:10.1016/j.transproceed.2018.02.006

PubMed Abstract | CrossRef Full Text | Google Scholar

37. Niclauss, N, Wojtusciszyn, A, Morel, P, Demuylder-Mischler, S, Brault, C, Parnaud, G, et al. Comparative Impact on Islet Isolation and Transplant Outcome of the Preservation Solutions Institut Georges Lopez-1, University of Wisconsin, and Celsior. Transplantation (2012). 93:703–8. doi:10.1097/tp.0b013e3182476cc8

PubMed Abstract | CrossRef Full Text | Google Scholar

38. García-Gil, FA, Fuentes-Broto, L, Albendea, CD, Serrano, MT, Roselló-Catafau, J, Lampreave, F, et al. Evaluation of Institut Georges Lopez-1 Preservation Solution in Pig Pancreas Transplantation. Transplantation (2014). 97:901–7. doi:10.1097/tp.0000000000000050

PubMed Abstract | CrossRef Full Text | Google Scholar

39. Beiras-Fernandez, A, Chappell, D, Hammer, C, Beiras, A, Reichart, B, and Thein, E. Impact of Polyclonal Anti-thymocyte Globulins on the Expression of Adhesion and Inflammation Molecules after Ischemia-Reperfusion Injury. Transpl Immunol (2009). 20:224–8. doi:10.1016/j.trim.2008.11.004

PubMed Abstract | CrossRef Full Text | Google Scholar

40. Mehrabi, A, Mood, ZA, Sadeghi, M, Schmied, BM, Müller, SA, Welsch, T, et al. Thymoglobulin and Ischemia Reperfusion Injury in Kidney and Liver Transplantation. Nephrol Dial Transpl (2007). 22 Suppl 8(Suppl. 8):viii54. viii54-viii60. doi:10.1093/ndt/gfm651

CrossRef Full Text | Google Scholar

41. Ferrer, J, Molina, V, Rull, R, López-Boado, MÁ, Sánchez, S, García, R, et al. Pancreas Transplantation: Advantages of a Retroperitoneal Graft Position. Cirugía Española (English Edition) (2017). 95:513–20. doi:10.1016/j.cireng.2017.05.012

CrossRef Full Text | Google Scholar

42. Lindahl, JP, Horneland, R, Nordheim, E, Hartmann, A, Aandahl, EM, Grzyb, K, et al. Outcomes in Pancreas Transplantation with Exocrine Drainage through a Duodenoduodenostomy versus Duodenojejunostomy. Am J Transpl (2018). 18:154–62. doi:10.1111/ajt.14420

PubMed Abstract | CrossRef Full Text | Google Scholar

43. Ferrer-Fàbrega, J, and Fernández-Cruz, L. Exocrine Drainage in Pancreas Transplantation: Complications and Management. Wjt (2020). 10(12):392–403. doi:10.5500/wjt.v10.i12.392

PubMed Abstract | CrossRef Full Text | Google Scholar

Keywords: pancreas transplantation, graft survival, preservation solution, ischemia-reperfusion, pancreatitis, postoperative outcomes

Citation: Ferrer-Fàbrega J, Folch-Puy E, Lozano JJ, Ventura-Aguiar P, Cárdenas G, Paredes D, García-Criado Á, Bombí JA, García-Pérez R, López-Boado MÁ, Rull R, Esmatjes E, Ricart MJ, Diekmann F, Fondevila C, Fernández-Cruz L, Fuster J and García-Valdecasas JC (2022) Current Trends in Organ Preservation Solutions for Pancreas Transplantation: A Single-Center Retrospective Study. Transpl Int 35:10419. doi: 10.3389/ti.2022.10419

Received: 09 February 2022; Accepted: 25 February 2022;
Published: 28 March 2022.

Copyright © 2022 Ferrer-Fàbrega, Folch-Puy, Lozano, Ventura-Aguiar, Cárdenas, Paredes, García-Criado, Bombí, García-Pérez, López-Boado, Rull, Esmatjes, Ricart, Diekmann, Fondevila, Fernández-Cruz, Fuster and García-Valdecasas. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Joana Ferrer-Fàbrega, 2008jff@gmail.com, joferrer@clinic.cat

ORCID: Joana Ferrer-Fábrega, orcid.org/0000-0002-5723-4209; Emma Folch-Puy, orcid.org/0000-0002-6277-9027; Pedro Ventura-Aguiar, orcid.org/0000-0003-3381-7503; Ángeles García-Criado, orcid.org/0000-0003-3536-4288; Enric Esmatjes, orcid.org/0000-0002-6329-5059; Fritz Diekmann, orcid.org/0000-0001-6199-3016; Constantino Fondevila, orcid.org/0000-0002-6161-6824; Josep Fuster, orcid.org/0000-0002-1713-4262

These authors have contributed equally to this work and share first authorship
