Alexander S. Wang1,2*
Hanieh Agharazi2,3Aetan Parmar4
Camilla W. Kilbane1,2Lauren Cameron1,2Aasef G. Shaikh1,2,3
Steven A. Gunzler1,2- 1Movement Disorders Center, Department of Neurology, University Hospitals Cleveland Medical Center, Cleveland, OH, United States
- 2Department of Neurology, Case Western Reserve University, Cleveland, OH, United States
- 3Department of Neurology, Louis Stokes VA Medical Center, Cleveland, OH, United States
- 4Ohio State University, Columbus, OH, United States
Introduction: Pain is a common symptom of cervical dystonia (CD). The mainstay of treatment of CD is botulinum toxin, which is known to have benefits in relieving pain. We aimed to characterize the locations of pain in patients with CD, and to assess what factors may predict pain reduction following botulinum toxin injection.
Methods: We conducted a single-center observational study of CD patients who reported pain and who received botulinum toxin treatment. On the day of their toxin injection (in the untreated state), they filled out a survey evaluating primary and secondary sites of pain as indicated on a diagram, as well as Pain Numeric Rating Scale assessing average pain over the past 24 h. Two weeks later, they filled out a follow-up survey (in the treated state) to evaluate whether location and pain intensity changed.
Results: 55 people with CD participated in the study, and 40 of them completed both surveys. Most patients reported pain localization over the posterior musculature, especially in the areas overlying superior trapezius and levator scapulae. 21 of 40 (52.5%) patients reported improvement of pain intensity by ≥ 30% in the primary site of pain. The mean improvement in pain intensity was 30.4% (SD = 32.4%), with a mean improvement on Numeric Rating Scale of 2.13 (SD = 2.02). 68% of patients received injections into or close to their primary site of pain. Using univariate linear regression, there was no clear effect of age, sex, muscles injected, or TWSTRS motor subscale on the degree of pain improvement. The locations of pain remained relatively stable in the post-treatment state.
Conclusion: We confirmed that botulinum toxin is effective for treatment of pain related to CD. We also gained insight into the typical locations of pain in CD by generating a heat map, showing pain most often in the regions of upper trapezius, levator scapulae, and splenius cervicus and capitis. Although there was not a significant correlation between the site of botulinum toxin injection and pain improvement, larger studies are needed to better determine optimal treatment strategies.
Introduction
Cervical dystonia (CD) is a disorder characterized by involuntary neck muscle contractions causing abnormal postures and sometimes tremor of the head. Compared to other dystonia syndromes, CD patients experience the highest rates of pain [1, 2]. Approximately three of every four CD patients experience pain, which is often described as pulling, aching, deep, or sharp [2–5]. The pain tends to be unilateral involving the muscles near the upper trapezius, but often radiates down one arm or higher up towards the occiput [4].
Botulinum neurotoxin (BoNT) is the most common and most effective treatment of choice for CD [6, 7]. The benefits of BoNT treatment on motor responses, quality of life, and pain have been well established, and many studies have demonstrated that a majority of patients report some degree of pain relief [8–10]. Although botulinum toxin has demonstrated clear benefit, a large portion of treated patients continue to report incomplete satisfaction, often owing to inefficacy, side effects, or logistical reasons [11].
The objectives of our study were first to characterize the typical locations of pain in patients with CD, as well as to assess the effects of botulinum toxin on the locations and severity of pain. Next, we aimed to determine what clinical and demographic factors predicted pain improvement. We hypothesized that patients who received higher doses of toxin, and who had injections directly into their muscular location of pain, would have superior pain improvement.
Materials and methods
Bioethics statement
The study involving human participants was reviewed and approved by University Hospitals Institutional Review Board. The participants provided written informed consent to participate in this study. Written informed consent was obtained from the individual for the publication of the identifiable diagram photo included in this article.
Study design
We conducted a single-center study of idiopathic CD patients who reported pain and who received botulinum toxin treatment. Patients were recruited on the day of their BoNT injection appointment at University Hospitals Cleveland Medical Center in Cleveland, OH, USA. The patients all received electromyography-guided BoNT injections from movement disorders neurologists and if possible, also underwent clinical evaluation of CD severity using the Toronto Western Spasmodic Torticollis Rating Scale (TWSTRS) motor subscale. On the day of the botulinum toxin injection (in the untreated state), patients filled out a survey evaluating primary (most severe) and secondary (second most severe) sites of pain as indicated on a diagram, as well as Pain Numeric Rating Scale assessing average pain over the past 24 h (Figure 1). The patients were then given a follow-up survey 2 weeks later (in the treated state) to re-evaluate whether location and pain intensity changed.
Figure 1. Survey provided to CD patients on the day of their BoNT injection as well as 2 weeks later to evaluate patterns of pain in the untreated and treated state.
A virtual adaptation of the same survey, in addition to a TWSTRS examination conducted over video visit, was also given to some patients for whom there was a time constraint against completing the in-person evaluation.
Patients who did not submit a second survey or who filled out an invalid or incomplete response were excluded from that part of the analysis.
Statistical analysis
We calculated the distance between pain locations, comparing the pre-treatment survey and post-treatment survey by overlaying the diagram responses onto a digital grid allowing standardized pixel distance measurements.
We created a heatmap of combined survey responses and collaborated with a medical illustrator to draw in the expected locations of underlying muscles. We then used this composite diagram along with the clinical documentation to identify whether the patient’s site of pain was injected directly with BoNT to one of the overlying muscles. For instance, if the marked site of pain overlapped with both splenius cervicus and splenius capitis on the overlaid diagram, then injection into either muscle would count as injection into their site of pain.
We used univariate linear regression to evaluate the contributions of age, gender, disease duration, total BoNT dose, BoNT dose into specific muscles, pain distance between pre-treatment and post-treatment states, TWSTRS motor total score, and TWSTRS motor subscores. We excluded those patients who received abobotulinumtoxinA in the BoNT dose analysis, as the vast majority of patients received onabotulinumA, and there is no well accepted conversion factor between the two toxins. We used the Wilcoxon rank-sum test to compare pain improvement responses between those patients who did and those who did not have injections into their primary site of pain. All statistical analyses were performed with Matlab R2022 using an alpha of 0.05.
Results
We recruited a total of 55 patients who filled out the first survey, of which 21 were performed virtually and 34 were in person. 40 patients submitted a second survey approximately 2 weeks after the first survey. Baseline characteristics are listed in Table 1.

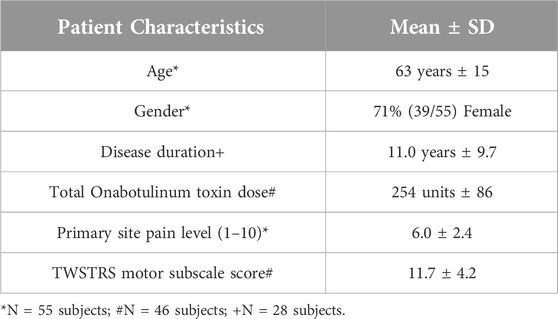

Table 1. Baseline characteristics of CD patients on the day of their BoNT injection.
31 out of 37 (84%) respondents recorded “yes” that their pain improved following BoNT injection. We did not find any reports of side effects related to BoNT treatment. The mean improvement in pain intensity was 30.4% (SD 32.4%), with a mean (SD) improvement on Numeric Rating Scale of 2.13 (2.02). Those who reported pain benefit had a mean (SD) improvement of 2.44 points (2.19) at the primary pain site on the visual analog scale in the treated compared to untreated state. 21 of 40 (52.5%) patients reported improvement of pain intensity by ≥30% in the primary site of pain. 5 of 40 (12.5%) respondents reported complete resolution of pain. The mean distance between primary pain sites from the baseline to follow-up survey was 70 pixels (SD 81), which correlates with approximately 5 cm. A heatmap of reported pain locations before and after treatment is shown on Figure 2.

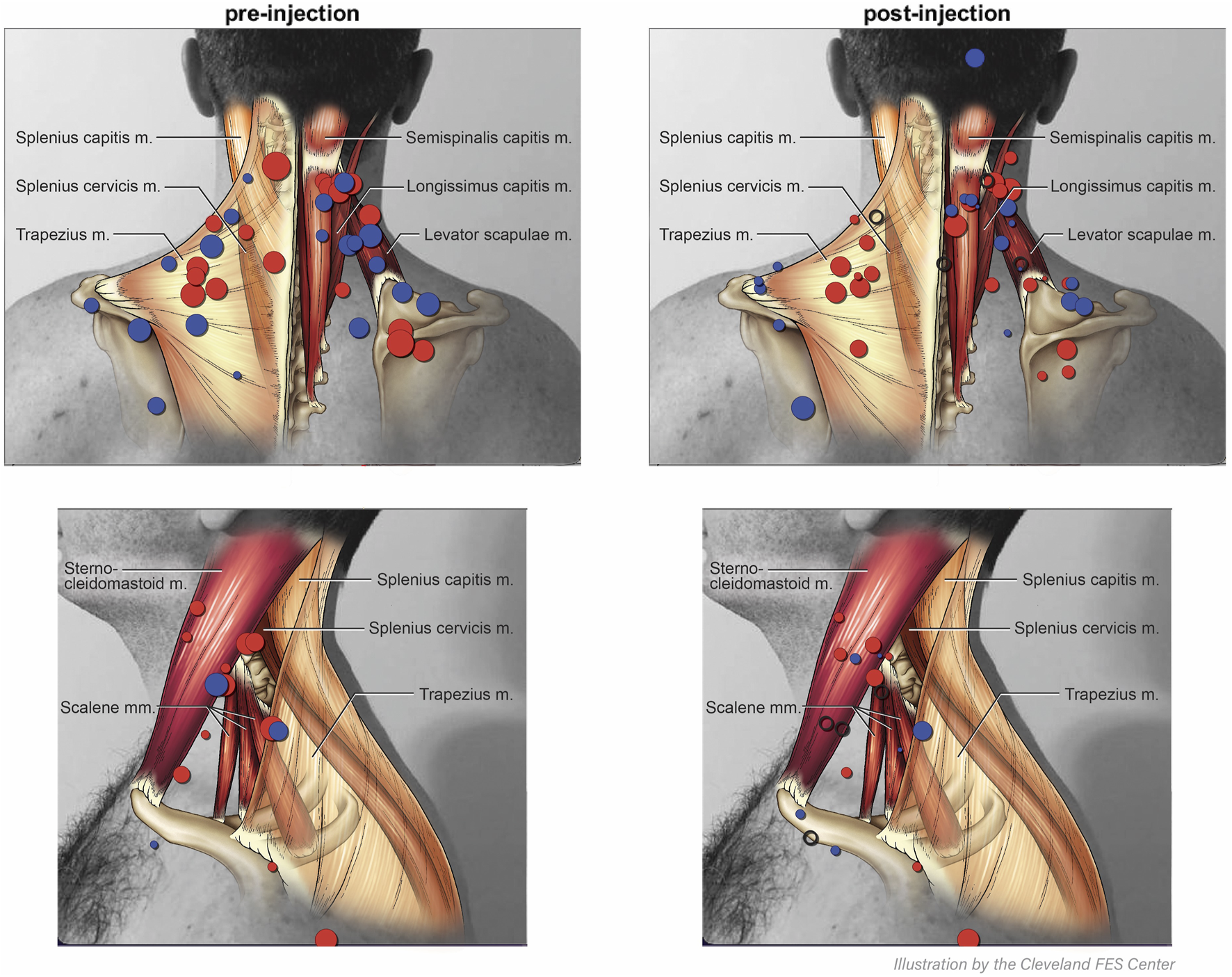

Figure 2. A heatmap of reported primary and secondary pain locations in the treated and untreated states. Red circles indicate primary pain site. Blue circles indicate secondary pain site. The size of the circle is proportional to the degree of reported pain on a scale from 1 to 10. Open circles represent post-treatment areas of resolved pain (reported as 0 out of 10 on the second survey).
There was no clear effect of age, gender, disease duration, total BoNT dose, BoNT doses in individual muscles, TWSTRS motor subscale, or change in pain location on the degree of numerical pain improvement (Supplementary Table S1).
Overall, 33 of 53 (62%) respondents had BoNT injections into their primary site of pain, and 21 of 33 (64%) respondents into their secondary site of pain. The mean (SD) improvement of pain in respondents who had injections into their primary or secondary site of pain (n = 30) was 2.33 (2.4), in contrast to those who did not have injections into either site (n = 9), who reported a mean (SD) pain improvement of 1.33 (2.29) points. There was no significant difference between these two groups (p = 0.30).
Discussion
We found similar rates of pain improvement in CD following BoNT compared to the existing literature [8]. Our heatmap suggests that the majority of reported pain sites are located around the posterior musculature near the areas of upper trapezius, levator scapulae, and splenius cervicus and capitis. To a lesser degree, anterolateral neck pain was also reported, especially in the region around sternocleidomastoid. The reported locations of pain did not vary significantly between treated and untreated states. Although we did not find any clear predictors of pain improvement, our study was not powered to sufficiently assess this. More study in larger samples may also clarify whether clinicians ought to pursue a “chase the pain” approach in those patients for whom pain relief is a priority.
Notably, there was a discrepancy in perceived benefit as compared to change in numerical pain ratings. Of those six respondents who reported no improvement in pain following injection, three patients wrote a lower numerical pain value on the followup survey. Conversely, 5 of the 31 patients who did report pain improvement wrote either no change or increased numerical pain values on the followup survey. This underscores the contribution of recall bias, as well as a limitation in assessing one-time pain levels as opposed to using more detailed daily pain logs.
One of the main contributions of pain in CD is likely to be muscular in origin, as suggested by typical patterns of pain correlating with muscles that are clinically overactive [4]. However, other lines of evidence have implicated central or multifactorial mechanisms towards pain generation [12–14]. Further studies with more patients and perhaps more detailed and validated pain scales (such as the Pain in Dystonia Scale) are needed to further delineate what factors may predict pain improvement following BoNT [15].
Data availability statement
The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.
Ethics statement
The studies involving humans were approved by University Hospitals Cleveland Medical Center Institutional Review Board. The studies were conducted in accordance with the local legislation and institutional requirements. The participants provided their written informed consent to participate in this study. Written informed consent was obtained from the individual for the publication of the identifiable diagram photo included in this article.
Author contributions
AW: study design, data collection, data analysis, manuscript draft. HA: data analysis, heatmap creation. AP: data analysis. CK: data collection, manuscript editor. LC: data collection. AS: study design, manuscript editor. SG: study design, data collection, manuscript editor. All authors contributed to the article and approved the submitted version.
Funding
The author(s) declare that no financial support was received for the research and/or publication of this article.
Acknowledgments
We thank all of our cervical dystonia patients who were gracious enough to participate in the study. Special acknowledgments go to Sofia Cina, Medical Illustrator at Cleveland FES Center. We thank Donald Cameron for allowing the use of his photo to create the patient diagram.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Generative AI statement
The author(s) declare that no Generative AI was used in the creation of this manuscript.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontierspartnerships.org/articles/10.3389/dyst.2025.14652/full#supplementary-material
References
1. Hamami, F, and Baumer, T. Pain and cervical dystonia. Schmerz (2024) 38(1):41–7. doi:10.1007/s00482-024-00790-5
2. Chan, J, Brin, MF, and Fahn, S. Idiopathic cervical dystonia: clinical characteristics. Mov Disord (1991) 6(2):119–26. doi:10.1002/mds.870060206
3. Charles, PD, Adler, CH, Stacy, M, Comella, C, Jankovic, J, Manack Adams, A, et al. Cervical dystonia and pain: characteristics and treatment patterns from CD PROBE (cervical dystonia patient registry for observation of OnabotulinumtoxinA efficacy). J Neurol (2014) 261(7):1309–19. doi:10.1007/s00415-014-7343-6
4. Kutvonen, O, Dastidar, P, and Nurmikko, T. Pain in spasmodic torticollis. Pain (1997) 69(3):279–86. doi:10.1016/S0304-3959(96)03296-4
5. Rosales, RL, Cuffe, L, Regnault, B, and Trosch, RM. Pain in cervical dystonia: mechanisms, assessment and treatment. Expert Rev Neurother (2021) 21(10):1125–34. doi:10.1080/14737175.2021.1984230
6. Rodrigues, FB, Duarte, GS, Castelao, M, Marques, RE, Ferreira, J, Sampaio, C, et al. Botulinum toxin type A versus anticholinergics for cervical dystonia. Cochrane Database Syst Rev (2021) 4(4):CD004312. doi:10.1002/14651858.CD004312.pub3
7. Castelao, M, Marques, RE, Duarte, GS, Rodrigues, FB, Ferreira, J, Sampaio, C, et al. Botulinum toxin type A therapy for cervical dystonia. Cochrane Database Syst Rev (2017) 12(12):CD003633. doi:10.1002/14651858.CD003633.pub3
8. Camargo, CH, Cattai, L, and Teive, HA. Pain relief in cervical dystonia with botulinum toxin treatment. Toxins (Basel). (2015) 7(6):2321–35. doi:10.3390/toxins7062321
9. Hefter, H, Benecke, R, Erbguth, F, Jost, W, Reichel, G, and Wissel, J. An open-label cohort study of the improvement of quality of life and pain in de novo cervical dystonia patients after injections with 500 U botulinum toxin A (Dysport). BMJ Open (2013) 3(4):e001853. doi:10.1136/bmjopen-2012-001853
10. Wissel, J, Kanovsky, P, Ruzicka, E, Bares, M, Hortova, H, Streitova, H, et al. Efficacy and safety of a standardised 500 unit dose of Dysport (clostridium botulinum toxin type A haemaglutinin complex) in a heterogeneous cervical dystonia population: results of a prospective, multicentre, randomised, double-blind, placebo-controlled, parallel group study. J Neurol (2001) 248(12):1073–8. doi:10.1007/s004150170028
11. Comella, C, and Bhatia, K. An international survey of patients with cervical dystonia. J Neurol (2015) 262(4):837–48. doi:10.1007/s00415-014-7586-2
12. Kulisevsky, J, Lleo, A, Gironell, A, Molet, J, Pascual-Sedano, B, and Pares, P. Bilateral pallidal stimulation for cervical dystonia: dissociated pain and motor improvement. Neurology (2000) 55(11):1754–5. doi:10.1212/wnl.55.11.1754
13. Tinazzi, M, Squintani, GM, Bhatia, KP, Segatti, A, Donato, F, Valeriani, M, et al. Pain in cervical dystonia: evidence of abnormal inhibitory control. Parkinsonism Relat Disord (2019) 65:252–5. doi:10.1016/j.parkreldis.2019.06.009
14. Marciniec, M, Szczepanska-Szerej, A, Popek-Marciniec, S, and Rejdak, K. Pain incidence in cervical dystonia is determined by the disease phenotype. J Clin Neurosci (2020) 79:133–6. doi:10.1016/j.jocn.2020.07.069
