ORIGINAL RESEARCH

Dystonia, 21 July 2022
This article is part of the Special Issue Models, Mechanisms, and Maturation in Developmental Dystonia View all 5 articles

Electrophysiological Characterization of the Striatal Cholinergic Interneurons in Dyt1 ΔGAG Knock-In Mice

Hong XingHong XingFumiaki Yokoi
Fumiaki Yokoi*Ariel Luz Walker&#x;Ariel Luz WalkerRosemarie Torres-MedinaRosemarie Torres-MedinaYuning LiuYuning LiuYuqing Li
Yuqing Li*
  • Department of Neurology, Norman Fixel Institute of Neurological Diseases, College of Medicine, University of Florida, Gainesville, FL, United States

DYT1 dystonia is an inherited early-onset movement disorder characterized by sustained muscle contractions causing twisting, repetitive movements, and abnormal postures. Most DYT1 patients have a heterozygous trinucleotide GAG deletion mutation (ΔGAG) in DYT1/TOR1A, coding for torsinA. Dyt1 heterozygous ΔGAG knock-in (KI) mice show motor deficits and reduced striatal dopamine receptor 2 (D2R). Striatal cholinergic interneurons (ChIs) are essential in regulating striatal motor circuits. Multiple dystonia rodent models, including KI mice, show altered ChI firing and modulation. However, due to the errors in assigning KI mice, it is essential to replicate these findings in genetically confirmed KI mice. Here, we found irregular and decreased spontaneous firing frequency in the acute brain slices from Dyt1 KI mice. Quinpirole, a D2R agonist, showed less inhibitory effect on the spontaneous ChI firing in Dyt1 KI mice, suggesting decreased D2R function on the striatal ChIs. On the other hand, a muscarinic receptor agonist, muscarine, inhibited the ChI firing in both wild-type (WT) and Dyt1 KI mice. Trihexyphenidyl, a muscarinic acetylcholine receptor M1 antagonist, had no significant effect on the firing. Moreover, the resting membrane property and functions of hyperpolarization-activated cyclic nucleotide-gated (HCN) channels, μ-opioid receptors, and large-conductance calcium-activated potassium (BK) channels were unaffected in Dyt1 KI mice. The results suggest that the irregular and low-frequency firing and decreased D2R function are the main alterations of striatal ChIs in Dyt1 KI mice. These results appear consistent with the reduced dopamine release and high striatal acetylcholine tone in the previous reports.

Introduction

Dystonia is a movement disorder with abnormal postures, twisting, and repetitive movements caused by sustained muscle contractions (1, 2). Dystonia can be caused by multiple etiologies, such as stroke, brain injury, sporadic, and gene alterations. DYT1 dystonia is an inherited movement disorder characterized by early-onset, generalized torsion, twisting, repetitive movements, or abnormal postures [DYT-TOR1A; Online Mendelian Inheritance in Man (OMIM) identifier #128100]. Most patients have a heterozygous in-frame trinucleotide deletion (ΔGAG) in DYT1/TOR1A, coding for torsinA (3). The penetrance is about 30%–40%, and non-symptomatic carriers of the DYT1 gene mutation have an impairment in sequence learning (4, 5). Trihexyphenidyl (THP), an antagonist mainly to muscarinic acetylcholine receptor M1, ameliorates dystonic symptoms in DYT1 patients, suggesting a functional alteration in cholinergic or its related system (6, 7).

Two independent mutant mouse lines with the corresponding trinucleotide deletion in the endogenous Dyt1/Tor1a have been reported, i.e., the Dyt1 ΔGAG heterozygous knock-in (KI) mice (www.informatics.jax.org; Allele Symbol: Tor1atm1Yql) (8) and Tor1a+/Δgag KI mice (Tor1atm2Wtd) (9). Although both lines do not show overt dystonic symptoms, motor deficits of the hind limbs in the beam-walking test were reproduced in distinct batches of one line (8, 10, 11) and another line (12, 13). The same motor deficits in the beam-walking test were observed in other genetic dystonia mouse models, such as DYT11 myoclonus-dystonia and DYT12 rapid-onset dystonia with parkinsonism (14, 15), suggesting beam-walking deficits as a typical motor phenotype in these genetic dystonia mouse models. Motor deficits using other behavioral tests were also reported in other genetic animal models (1619), such as rat (20), nematode (11), and fruit fly (21, 22). Dyt1 KI mice exhibit the corticostriatal long-term depression (LTD) deficits (23), sustained contraction and co-contraction of agonist and antagonist muscles of hind limbs (24), motor deficits in the beam-walking test (8), and impaired motor-skill transfer (25). These phenotypes are ameliorated by trihexyphenidyl (THP) (23, 24, 26), suggesting that these phenotypes are caused by the same mechanism as DYT1 dystonia patients.

The fibroblasts from DYT1 patients show a reduction of torsinA (9). The mutant torsinA is quickly degraded in transfected cells, suggesting that the GAG deletion causes partial loss of torsinA function (27, 28). Both Dyt1 knockdown mice (29) and Dyt1 heterozygous KO mice (30) show motor deficits in the beam-walking test, suggesting that partial loss of torsinA contributes to the motor deficits. Both cerebral cortex-specific Dyt1 conditional knockout (KO) mice (31), which were produced by crossing Dyt1 loxP mice and Emx1-Cre mice (32), and striatum-specific Dyt1 conditional KO mice (33), which were produced by crossing Dyt1 loxP mice and Rgs9-Cre mice (34), also show beam-walking deficits (31). Therefore, the loss of torsinA function in the corticostriatal pathway contributes to motor deficits. Moreover, both cholinergic neuron-specific torsinA knockout (ChKO) mice with Neo cassette (35) and those without Neo cassette (Ch2KO) mice show motor deficits (36). Dopamine receptor 2 (D2R)-expressing-cell-specific Dyt1 conditional KO (d2KO) mice also show beam-walking deficits (37). On the other hand, the cerebellar Purkinje cell-specific Dyt1 conditional KO and dopamine receptor 1 (D1R)-expressing-cell-specific Dyt1 conditional KO (d1KO) mice show better performance in beam-walking (38). On the other hand, acute suppression of torsinA expression via AAV-TorsinA shRNA-GFP induces a dystonia-like phenotype (39), highlighting the contribution of the cerebellum to the pathogenesis of DYT1 dystonia (40). Dyt1 KI mice show striatal D1R (25) and D2R reductions (23). Dyt1 sKO and Dyt1 d2KO mice show striatal D2R reduction and Dyt1 d1KO mice show striatal D1R maturation deficits, suggesting that the D1R and D2R reductions are intrinsic cellular properties caused by the loss of torsinA in the corresponding neurons. Dyt1 ΔGAG homozygous KI and Dyt1 homozygous KO mice show neonatal lethality (8, 9, 31). On the other hand, the mutant mice with a combination of neuron- and glia-cell-specific Dyt1 conditional KO and heterozygous KO show growth retardation and infant lethality, which can be rescued by enhanced care (41, 42).

Both Dyt1 KI and heterozygous KO mice show similar hippocampal neurotransmitter releasing deficits (30, 43). Tor1a+/Δgag KI mice show abnormal synaptic vesicle recycling, glutamate release, and calcium dynamics (4446). Moreover, Dlx-CKO mice, which have a combination of forebrain-specific conditional KO of torsinA in one allele and heterozygous KO in the other allele, show neurodegeneration of the striatal ChIs, and the surviving ChIs showed a trend of reduced spontaneous firing (47). Transgenic hMT mice (48), transgenic ΔETorA rats (20), and “Tor1a+/Δgag KI mice” (49) show abnormal ChI firing properties. However, it should be noted that “Tor1a+/Δgag KI mice” in the paper were purchased from Jackson Lab (Stock No. 006251), which is Tor1a+/− heterozygous KO mice lacking exons 2–4. Another recent report showed enhanced functions of μ-opioid receptors and large-conductance calcium-activated potassium (BK) channels of the striatal ChIs in Tor1a heterozygous KO mice (50).

Striatal ChIs show autonomous firing rather than reflections from the various synaptic input (51). The spontaneous firing patterns are affected by intrinsic membrane properties and the selective coupling of calcium currents to calcium-activated potassium currents and calcium dynamics (5254). However, recent studies suggest that the striatal ChIs receive inputs from multiple neurons, including the cortical and the thalamic neurons (55) and the striatal medium spiny neurons (MSNs) (5659). The striatal ChIs have an autofeedback mechanism through the inhibitory muscarinic acetylcholine receptors M2/M4 and RGS4 pathway (60, 61). Muscarine, a muscarinic acetylcholine receptor agonist, inhibits the striatal ChI firing in the rat brain slices by reducing N-, P- and L-type Ca2+ currents (62). Striatal ChIs affect the corticostriatal plasticity of the striatal MSNs (63). M1 and M4 muscarinic acetylcholine receptor mRNAs are expressed at high levels by the striatal MSNs (64) and have subtle changes in Tor1a+/Δgag KI mice (65). The released ACh binds M1-type receptors and depolarizes the MSNs. ACh also binds to M4 receptors on the direct pathway MSNs and modulates their activity (66). Moreover, striatal ACh binds to nicotinic acetylcholine receptors on the axons of dopaminergic neurons projecting from the substantia nigra pars compacta and synchronously stimulates local dopamine release (67). The released dopamine stimulates the surrounding D1R and D2R on the MSNs and D2R on the ChIs (57, 68).

Here, the striatal ChIs in the Dyt1 KI mice were characterized by electrophysiological recording of acute brain slices and a cellular morphological approach. The spontaneous firing of striatal ChIs and its modulation by muscarine (muscarinic acetylcholine receptor agonist), quinpirole (D2R agonist), and THP (M1 receptor antagonist) were examined. Furthermore, the effect of DAMGO (μ-opioid receptor agonist) and PAX (BK channel blocker) on the membrane currents was investigated (50). Moreover, the resting membrane property, the intrinsic excitability and hyperpolarization-activated cyclic nucleotide-gated (HCN) channels of the striatal ChIs were measured. Finally, the dendritic structure and soma size of the recorded ChIs were quantified.

Materials and Methods

Animals

All experiments were carried out in compliance with the USPHS Guide for Care and Use of Laboratory Animals and approved by the Institutional Animal Care and Use Committees of the University of Florida. Dyt1 KI mice (Tor1atm1Yql) and their littermate WT mice were prepared and genotyped by PCR (8, 69). Since male Dyt1 KI mice exhibited significant motor deficits in the previous study (8), only males were used for the present experiments. Mice were housed under a 12 h light and 12 h dark cycle with ad libitum access to food and water. All experiments were performed by investigators blind to the genotypes. This study followed the recommended heterogenization of study samples of various ages, and the data were analyzed with age as a covariate (70).

Brain Slices

Electrophysiological recordings for spontaneous firing and evoked firing of the striatal ChIs were obtained from 25 WT and 25 KI littermate male mice (6–11 weeks old), as described previously (71, 72).

Mice were anesthetized by the inhalation of isoflurane and decapitated. The brains were rapidly removed and briefly chilled in the ice-cold cutting solution containing (in mM) 190 Sucrose, 2.5 KCl, 1.25 NaH2PO4, 25 NaHCO3, 1 CaCl2, 10 MgCl2, and 10 D-glucose and was oxygenated with 95% O2–5% CO2 (pH 7.35–7.45). In the same ice-cold cutting solution, coronal brain slices (300 µm-thick) were obtained with a Vibratome (LEICA VT 1000S, Leica Microsystems, Wetzlar, Germany). Slices were first incubated on a brain slice keeper (AutoMate Scientific, Inc. Berkeley, CA) with a thin layer of artificial cerebrospinal fluid (ACSF) containing (in mM) 127 NaCl, 2.5 KCl, 1.25 NaH2PO4, 25 NaHCO3, 2 CaCl2, 5 MgCl2, and 10 D-glucose, saturated with 95% O2 and 5% CO2 (pH 7.35–7.45) at 35°C for 60 min, followed by incubation at room temperature. After a minimum of 60-min incubation, each slice was transferred to a submerged recording chamber with the continuous flow (2 ml/min) of ACSF containing (in mM) 127 NaCl, 2.5 KCl, 1.25 NaH2PO4, 25 NaHCO3, 2 CaCl2, 1 MgCl2, and 10 D-glucose and was constantly oxygenated with 95% O2 and 5% CO2 (pH 7.35–7.45). All experiments were carried out at 32 ± 0.5°C by a dual automatic temperature controller (TC-344B, Harvard Apparatus) under visual guidance using an inverted microscope equipped with infrared differential interference contrast (IR-DIC) videomicroscopy (Axioskop-FS; Carl Zeiss, Jena, Germany) and a 40× water-immersion lens.

Cell-Attached Recordings

The large neurons with ellipsoid-like soma were selected in the dorsal striatum under the microscope for the electrophysiological recordings. ChIs are further identified by whole-cell recording with step-current injection (73) and, in some cases, by a post hoc immunohistochemistry with an anti-ChAT antibody (71). Patch electrodes had a resistance of 5–10 MΩ when filled with a K-gluconate-based solution containing the following intracellular solution containing (in mM): 112.5 K-gluconate, 4 NaCl, 17.5 KCl, 0.5 CaCl2, 1 MgCl2, 5 K2ATP, 1 NaGTP, 5 EGTA, 10 HEPES, pH 7.2 (270–280 mOsm/l). Biocytin (0.1%) was added to the recording electrode solution to allow post hoc immunohistochemical identification of the recorded cells. While approaching the cell, positive pressure was applied to the patch electrode. The seal (>5 GΩ) between the recording pipette and the cell membrane was obtained by suctioning the electrode. Action potential currents were recorded in the voltage-clamp mode, maintaining an average of 0 pA holding current. After baseline recording, some ChIs were investigated further with bath applications of muscarine [(+)-Muscarine chloride (Sigma Aldrich, M6532-5MG), 10 μM, 90 s (s)] or, THP [DL-Trihexyphenidyl hydrochloride (Sigma Aldrich, T1516-5G), 5 μM, 90 s)] for testing the effect of agonist and antagonist to the muscarinic acetylcholine receptors on the ChIs, respectively. Moreover, some other ChIs were investigated with bath applications of quinpirole [Quinpirole hydrochloride (Sigma Aldrich, Q102-25MG), 10 μM, 2 min] for testing the effect of the agonist to D2R on the ChIs. The effect of quinpirole on spontaneous firing was also examined in a different condition., the spontaneous firing was recorded for 30 s just before adding the drug into the recording bath. The drug was added for 90 s, and recording data in the last 30 s during the drug treatment period were used as “after treatment”. In another condition, the firing was recorded for 3 min at around 10 min after starting the cell-attached recording. Ten µM quinpirole was then applied into the recording chamber for 3 min, followed by a 2 min wash out with ACSF and 3 min recording.

Whole-Cell Recording of the Striatal ChIs

Whole-cell recordings were made by breaking through the membrane. The electrophysiological intrinsic membrane properties (capacitance, input resistance, and time constant) were measured while holding the membrane potential at −60 mV. The liquid junction potential was compensated. Electrode access resistances during all whole-cell recordings were maintained at <25 MΩ. The current steps were injected in multiple 200 pA from −0.8 to 0.6 nA, and the evoked-action-potentials were recorded in the whole-cell recording mode with the current clamp.

To further characterize the electrophysiological properties of μ-opioid receptors and BK channels of the striatal ChIs in Dyt1 KI (n = 5) and control WT littermate male mice (n = 4) at 13–21 weeks-old, the current-voltage relationship of the striatal ChIs was measured by whole-cell recording mode during the voltage ramp (50) with the glass recording electrode filled with a K-gluconate solution containing the following (in mM): 125 K-gluconate, 0.5 EGTA, 19 HEPES, 0.3 GTP, 1 Mg-ATP, 10 NaCl, 2 MgCl2, 1 CaCl2. The brain slices were prepared as described above and incubated until recording. Each slice was transferred to a submerged recording chamber with the continuous flow (2 ml/min) of ACSF. The dorsal striatal ChIs were identified from their shape, and the spontaneous firing was confirmed in cell-attached mode, and then the membrane current was recorded in whole-cell recording mode. The membrane potential was held at −70 mV with a voltage clamp. The voltage ramp was applied from −60 to −140 mV in 500 ms, and the membrane current was recorded during the ramp. After multiple recordings, voltage ramp protocols were repeated when the recorded neurons were exposed to 1 μM tetrodotoxin (TTX), 1 μM TTX + 1 μM D-Ala2-MePhe4-Gly[ol]5enkephaline (DAMGO; AdipoGen; AG-CP3-0005V-M005), 1 μM TTX + 1 μM DAMGO + 1 μM Paxilline (PAX; Alomone labs; P-450) sequentially.

Recording Data Analysis

The recording data were acquired using pClamp 10 software and further analyzed by Mini Analysis Program (Synaptosoft). Signals were filtered at 5 kHz, and digitized at 10 kHz with a DigiData 1440 (Molecular Devices). Investigators who were blind to the genotypes performed the electrophysiological recordings and analysis. The 30 s (s) before drug treatment and the last 30 s during the drug treatment were used to analyze the drug effect on the spontaneous firing. For the 10-min quinpirole recording analysis, the 3 min before quinpirole treatment and the 3 min after 2 min of quinpirole washout were quantified.

Double-Staining of the Recorded Striatal ChIs and Tracing of the Dendrites

Since the neurons were recorded with the internal solution containing 0.1% biocytin, the recorded neurons were stained with fluorescent-conjugated streptavidin through biocytin-streptavidin binding. After the recordings, the brain slices were fixed overnight with 4% paraformaldehyde in 0.1M phosphate buffer (PB; pH 7.3) and stored in 0.1M PB. The slices were rinsed twice with 0.5% Triton X-100 in 0.02M PB for 10 min and then incubated for 2 hours protected from light in 0.5% (v/v) Triton X-100, 1% (w/v) bovine serum albumin (BSA), 0.02M PB, 0.2% (v/v) streptavidin Alexa Fluor 594 conjugate (Life technologies, S11227). The slices were rinsed with 0.5% Triton X-100 in 0.02M PB twice for 5 min each and then 0.02M PB once. The slices were washed in 10 mM glycine/PBS three times 5 min each and blocked in 2% gelatin/PBS for 15 min, 10 mM glycine/PBS for 5 min, and 0.1% BSA/PBS for 5 min. The blocked slices were incubated in goat anti-ChAT antibody (EMD Millipore, AB144P; 1:100 dilution) in 1% BSA/PBS for 2 h and washed in 0.1% BSA/PBS six times 5 min each. The slices were then incubated with Alexa Fluor 488 donkey anti-goat IgG (H+L) (Invitrogen, A11055; 1:200 dilution) in 1% BSA/PBS for 2 h and washed in 0.1% BSA/PBS six times 5 min each. The slices were mounted on glass slides with Vectashield Hard Set mounting medium for fluorescence (Vector Lab Inc., H-1400) and stored at 4°C overnight. The double-positive cells were confirmed using a ZEISS Axiophot RZGF-1 microscope with 2.5× or ×20 Plan-NEOFLUAR objective lens and FITC filter for Alexa Fluor 488 and Texas Red filter for Alexa Fluor 594, respectively. The dendrites were stained with streptavidin Alexa Fluor 594 conjugate and digitized at ×40 magnification using MBF Bioscience Neurolucida 7 and NeuroExplorer software (MicroBrightFields Bioscience). Sholl analysis (74) was performed using ImageJ software (NIH). Representative images were also taken by Olympus IX81-DSU Spinning Disk Confocal Microscope with ×60 Water immersion objective lens, FITC filter for Alexa Fluor 488, and Texas Red filter for Alexa Fluor 594, respectively.

Statistics

The spontaneous firing frequency and the drug effects were analyzed by a linear mixed model (lme), generalized linear mixed model (glmmTMB), and emmeans program in R version 4.1.2 (R Foundation for Statistical Computing, Vienna, Austria) for the animal-based nested data, or SAS GENMOD Procedure GEE model. The distribution of the data was checked by R shapiro.test. The coefficient of variation (CV), which is defined by standard deviations (SD) of the interspike intervals (ISI) per mean ISI (73), was analyzed by a generalized linear mixed model (R glmer) for the animal-based nested SD of ISI in gamma distribution concerning the offset log mean ISI. The number of paradoxically-excited ChIs was analyzed by R fisher.test. Wilcoxon rank-sum exact test was performed by R wilcox.test.

Median and confidence interval was analyzed by R MedianCI. The resting membrane property and IH current were analyzed by R lme with the animal-based nested data. The recording order per ChI was also used as a variable for IH. The current-step-evoked firing was analyzed by the SAS GENMOD Procedure GEE model with a negative binomial distribution. The membrane currents produced by voltage ramps were analyzed by the SAS GENMOD with gamma distribution concerning age. The number of intersections in Sholl analysis and the soma size of the ChIs were analyzed by Student’s t-test (75). The length of the longest traced dendrites was analyzed by glmmTMB. Significance was assigned at p < 0.05.

Results

Decreased Spontaneous Firing Frequency and Increased CV of the Striatal ChIs in Dyt1 KI Mice

The striatal ChIs play a vital role in the pathogenesis of dystonia (76). The striatal ChIs in the Dyt1 KI mice were characterized by the electrophysiological recording of acute brain slices. The spontaneous firing of the striatal ChIs was recorded by cell-attached recording mode with a voltage clamp (WT, 25 cells/14 mice; KI, 27 cells/15 mice). As shown in the representative traces of the striatal ChIs (Figure 1A), the firing frequency was significantly decreased in Dyt1 KI mice compared to WT mice [mean ± standard errors Hz; WT, 5.7 ± 0.3; KI, 4.3 ± 0.4; t(DF: 27) = −2.17, p = 0.039; Figure 1B]. Dyt1 KI mice also showed significantly increased CV [WT, 0.19 ± 0.02; KI, 0.29 ± 0.04; t(27) = 2.02, p = 0.044; Figure 1C]. Increased CV suggests a high irregularity of firing.

FIGURE 1
www.frontiersin.org

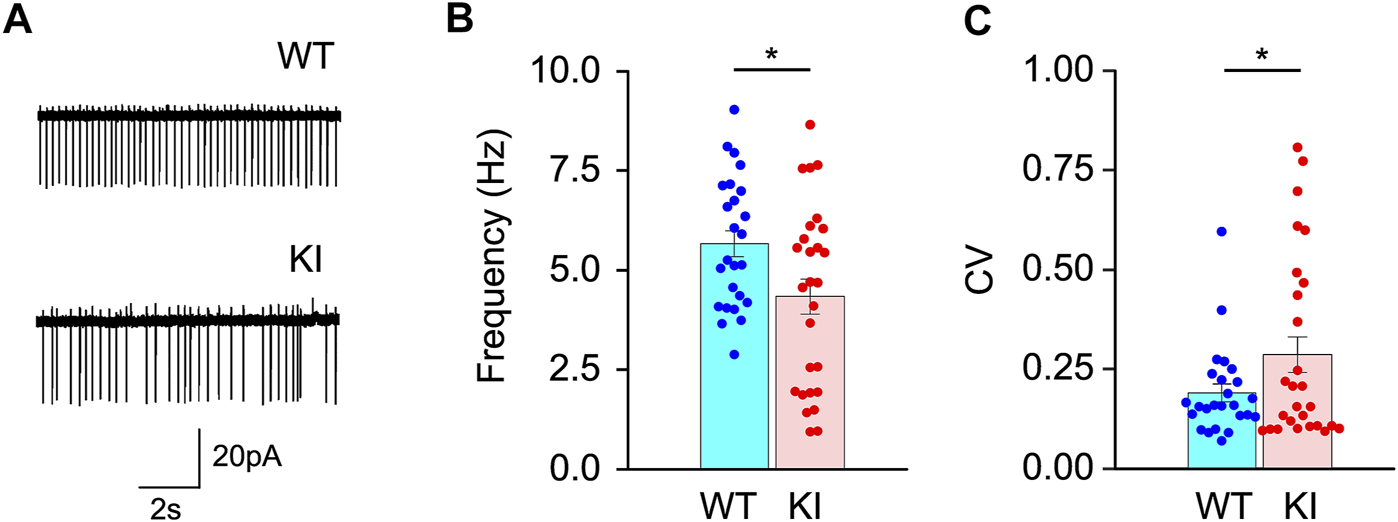

FIGURE 1. Spontaneous firing of the striatal ChIs in the acute brain slices. (A) The representative traces of the striatal ChIs. Spontaneous firing frequency (B) significantly decreased, and CV (C) significantly increased in Dyt1 KI mice. The bars represent means ± standard errors. The dots represent each data point. *p < 0.05.

Less Inhibitory Effect of Quinpirole on the Firing of the Striatal ChIs in Dyt1 KI Mice

D2R is reduced in the striatum of KI mice (23), but it is not known whether it is specifically reduced in striatal ChIs or not. The effect of quinpirole, a D2R agonist, on the spontaneous firing of striatal ChIs was further analyzed (WT, 10 cells/6 mice; KI, 12 cells/6 mice). A representative trace is shown in Figure 2A. The firing frequencies were decreased by quinpirole in both WT [Hz; before, 4.4 ± 0.8; after, 2.6 ± 0.8; t(13) = −2.9, p = 0.014; Figure 2B] and Dyt1 KI mice [Hz; before, 3.2 ± 0.4; after, 2.2 ± 0.4; t(17) = −3.0, p = 0.0087; Figure 2C]. After the quinpirole application, the recording chamber solution was changed to ACSF for more than 2 minutes. Most ChIs showed recovery of the spontaneous action potentials in both WT and Dyt1 KI mice. To compare the quinpirole inhibitory effect, we divided the frequency after the treatment by that before. Quinpirole showed less inhibitory effect in Dyt1 KI mice compared to WT mice [WT, 54 ± 6%; KI, 80 ± 5%; Chi-Square (1) = 4.47, p = 0.034; Figure 2D]. Since the inhibitory D2R is expressed on the striatal ChIs, the results suggest that the inhibition through D2R may be less effective in Dyt1 KI mice. As shown in Figures 2B,C, none of the ten ChIs in WT mice and two out of twelve ChIs in Dyt1 KI mice showed paradoxical excitation, which is a reversed excitatory response to quinpirole. Although paradoxically-excited ChIs were observed only in Dyt1 KI mice, Fisher’s exact test showed no statistically significant difference in the number of paradoxically-excited ChIs between WT and Dyt1 KI mice (p = 0.48). On the other hand, there was no significant difference in the CV after the quinpirole treatment in WT (before, 0.30 ± 0.07; after, 0.34 ± 0.08; z = 0.70, p = 0.49) and Dyt1 KI mice (before, 0.33 ± 0.07; after, 0.42 ± 0.09; z = 0.88, p = 0.38). Moreover, there was no significant difference between WT and Dyt1 KI mice in the effect of quinpirole on the CV (WT, 125 ± 20%; KI, 146 ± 34%; z = 0.60, p = 0.55).

FIGURE 2
www.frontiersin.org

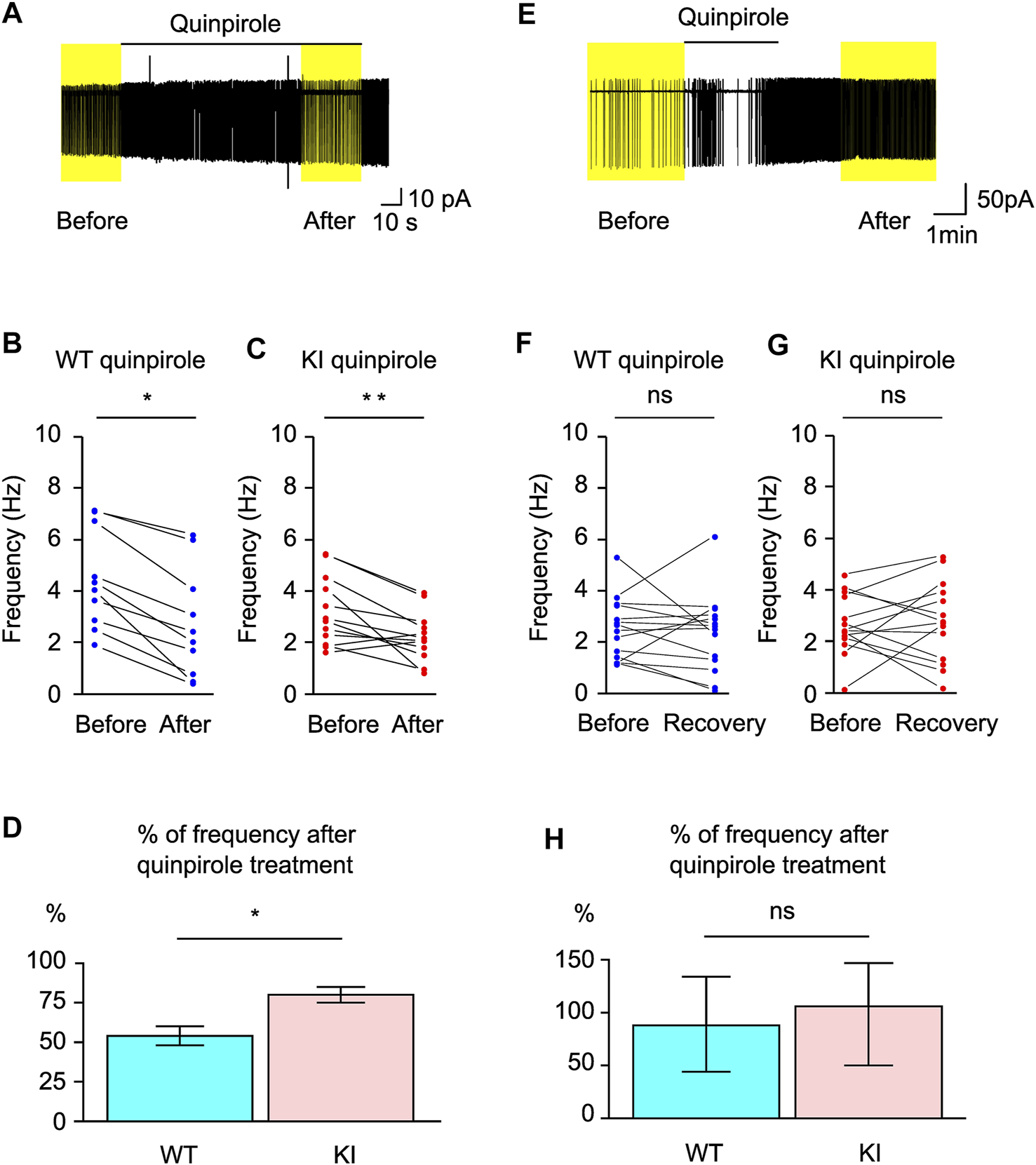

FIGURE 2. Responses of the striatal ChIs in the acute brain slices to quinpirole. Representative trace of the spontaneous firing and the inhibitory response to quinpirole (A). The spontaneous firings were inhibited by quinpirole in both WT (B) and Dyt1 KI mice (C). The percentage of frequency (Hz) after quinpirole (D) treatment was compared to those before treatment. The 30 s before drug application and the last 30 s during the drug application (yellow boxes) were used to analyze drug effects. There was significantly less quinpirole inhibition in the KI mice. (E) An extreme case of the paradoxical excitation of a KI ChI after quinpirole treatment was applied 13 min after the cell-attached recording. The lines under Quinpirole show the duration of drug application [(E), 120 s]. Overall, the spontaneous firings were not significantly inhibited by quinpirole in both WT (F) and Dyt1 KI mice (G). The frequency after quinpirole treatments was compared to before treatment (H). The bar graph show median of the percentage. The error bars show upper and lower 95% confidence intervals. The 3 min before drug application and the 3 min after 2 min washout (yellow boxes) were used to analyze the quinpirole effect. ns: not significant, *p < 0.05, **p < 0.01.

No Significant Difference in the Paradoxical Excitation of Striatal ChIs Between WT and Dyt1 KI Mice After Quinpirole Treatment

Paradoxical activation of D2R by quinpirole was reported in several mouse and rat models of DYT1 dystonia (7779). However, the paradoxical activation was not reproduced as detailed above. These published studies examined the quinpirole effect after extended baseline recording. Therefore we repeated the quinpirole experiment to mimic their recording condition. The firing frequency was compared before and after quinpirole treatment (WT, 14 cells/7 mice; KI, 14 cells/8 mice). The representative traces are shown in Figure 2E. There was no significant long-term effect of quinpirole on the firing frequencies in both WT [Hz; before, 2.6 ± 0.4; after, 2.4 ± 0.4; t(20) = −0.37 p = 0.72; Figure 2F] and Dyt1 KI mice [Hz; before, 2.6 ± 0.4; after, 2.8 ± 0.4; t(20) = 0.31, p = 0.76; Figure 2G]. As shown in Figures 2F,G, five out of fourteen ChIs in WT mice and seven out of fourteen ChIs in Dyt1 KI mice showed increased frequency compared to those before quinpirole treatment, which would qualify as paradoxical excitation. Fisher’s exact test showed no significant difference in the number of paradoxically-excited ChIs between WT and Dyt1 KI mice (p = 0.70). These results suggest no significant difference in the appearance of paradoxical excitation cells between the genotypes. The frequency after the treatment was divided by that before the treatment. Shapiro test showed that the ratio data were not normally distributed (WT, p = 0.030; KI, p = 1.7 × 10−6; all, p = 5.6 × 10−10). Wilcoxon rank-sum exact test showed that there was no significant difference in the long-term effect of quinpirole between WT and Dyt1 KI mice [median, (lower, upper 95% confidence interval); WT, 88, (44, 134); KI, 106, (50, 147); W = 111, p = 0.57; Figure 2H].

Equivalent Inhibitory Effect of Muscarine on the Firing of the Striatal ChIs Between WT and Dyt1 KI Mice

Muscarine, a muscarinic acetylcholine receptor agonist, inhibits the striatal ChI firing, and this effect was found to be absent in ChKO mice (35) but was found to be normal Ch2KO mice (36). The effect of muscarine on the spontaneous firing of striatal ChIs in KI mice has not been examined and is explored here. We compared the firing before and after muscarine application (WT, 11 cells/6 mice; KI, 13 cells/6 mice). The firing frequencies were significantly decreased by muscarine in both WT [Hz; before, 4.9 ± 0.5; after, 2.6 ± 0.5; t(15) = −3.15, p = 0.0066; Figure 3A] and Dyt1 KI mice [Hz; before, 4.6 ± 0.7; after, 2.2 ± 0.5; z = −3.2, p = 0.0012; Figure 3B]. To compare the inhibitory effect, we divided the frequency after the treatment by before the treatment. There was no significant difference in the inhibitory effect of muscarine between WT and Dyt1 KI mice [WT, 53 ± 3%; KI, 54 ± 5%; Chi-Square (1) = 0.02, p = 0.90; Figure 2C]. Since inhibitory muscarinic acetylcholine receptors, M2/M4, are expressed on the striatal ChIs, these results suggest that the inhibition through M2/M4 is not altered in Dyt1 KI mice.

FIGURE 3
www.frontiersin.org

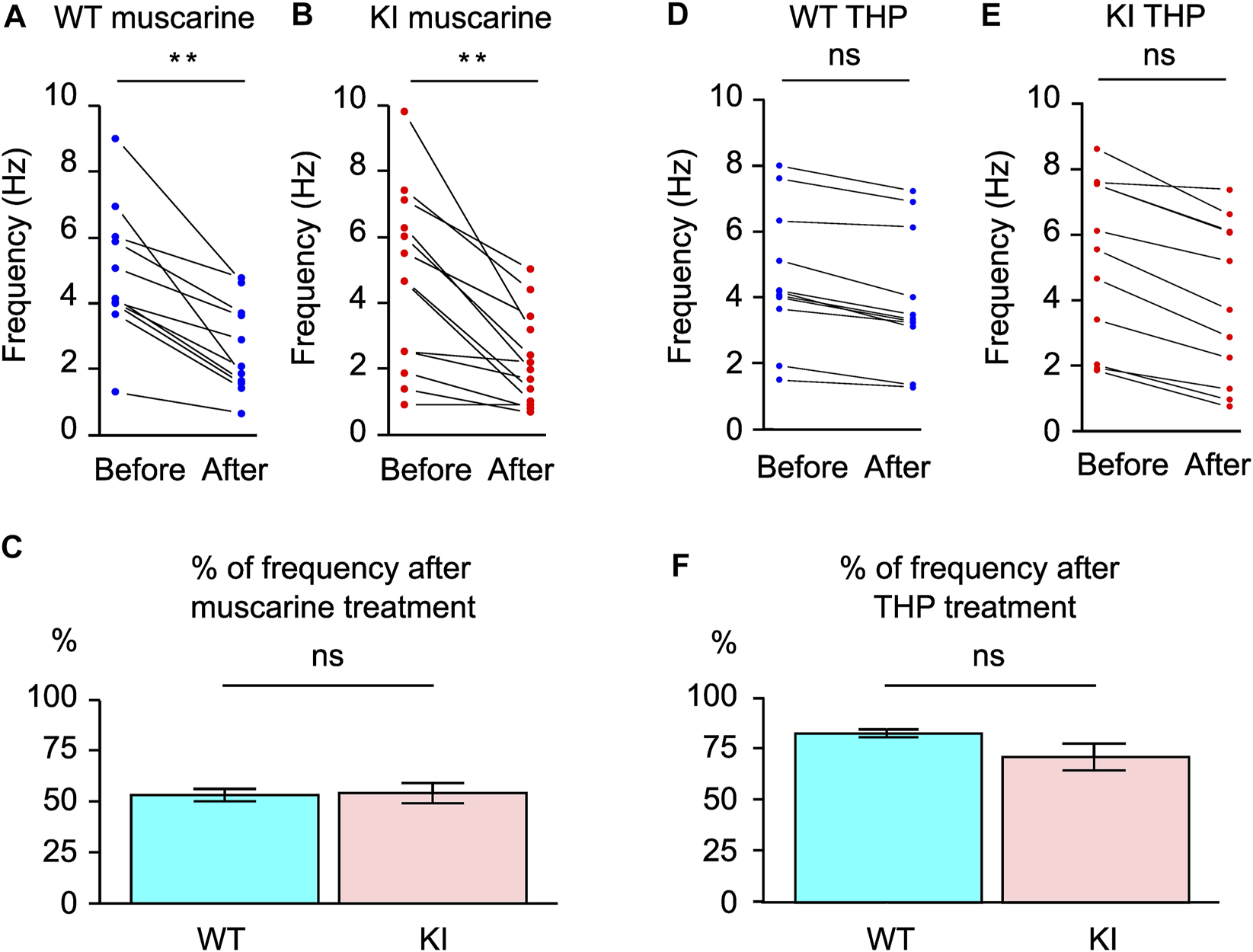

FIGURE 3. Responses of the striatal ChIs in the acute brain slices to muscarine and THP. The spontaneous firings were inhibited by muscarine in both WT (A) and Dyt1 KI mice (B). The percentage of frequency (Hz) after muscarine (C) was analyzed by comparing it to those before treatment. There was no significant alteration in the spontaneous firing frequencies after THP application in WT (D) and Dyt1 KI mice (E). The percentage of frequency (Hz) after THP treatment was compared to those before treatment (F). The bars represent means ± standard errors (C,F). ns, not significant, **p < 0.01.

No Significant Effect of Trihexyphenidyl on the Firing of the Striatal ChIs in WT and Dyt1 KI Mice

THP, a muscarinic acetylcholine receptor M1 antagonist, is effective in treating DYT1 patients and can reverse motor, electrophysiological, and EMG deficits in KI mice (23, 24, 26). The effect of THP on the spontaneous firing of striatal ChIs was examined to explore whether THP reverses the deficits by acting on striatal ChIs. We compared the firing before and after THP application (WT, 11 cells/3 mice; KI, 11 cells/4 mice). There was no significant alteration in the firing frequencies by THP in both WT [Hz; before, 4.6 ± 0.7; after, 3.8 ± 0.7; Chi-Square (1) = 2.76, p = 0.097; Figure 3D] and Dyt1 KI mice [Hz; before, 5.5 ± 1.0; after, 4.1 ± 1.0; Chi-Square(1) = 3.74, p = 0.053; Figure 3E]. To compare the THP effect, we divided the frequency after the treatment by that of before and compared WT and Dyt1 KI mice. There was no significant difference in the effect of THP between WT and Dyt1 KI mice [WT, 83 ± 2%; KI, 71 ± 7%; Chi-Square(1) = 1.80, p = 0.18; Figure 3F]. These results suggest that THP does not affect the spontaneous firing of the ChIs in KI mice.

No Significant Alteration in the Membrane Property and the Intrinsic Excitability of the Striatal ChIs in Dyt1 KI Mice

This series of experiments is to determine whether the membrane property and intrinsic excitability contribute to the reduced spontaneous firing of striatal ChIs in the KI mice or not. After recording the spontaneous firing by cell-attached mode, the intrinsic membrane properties were measured in whole-cell recording mode. The resting membrane property of the striatal ChIs was characterized in the brain slices from 11 WT (29 cells) and 15 Dyt1 KI mice (26 cells). There was no significant difference in the resting membrane potential (RMP), the membrane capacitance, the input resistance (IR), or the time constant between WT and Dyt1 KI mice (Table 1).

TABLE 1
www.frontiersin.org

TABLE 1. Electrophysiological characterization of the ChI resting membrane property in the dorsal striatum.

The intrinsic excitability of the striatal ChIs in the brain slices was measured with current step injections (Figures 4A–C). The recorded neurons showed typical electrophysiological properties of the striatal ChIs (51). The hyperpolarization and cyclic nucleotide activated cation current (IH) was calculated (80). There was no significant alteration in IH between WT and Dyt1 KI mice (Table 1), suggesting that HCN channels were normal in Dyt1 KI mice.

FIGURE 4
www.frontiersin.org

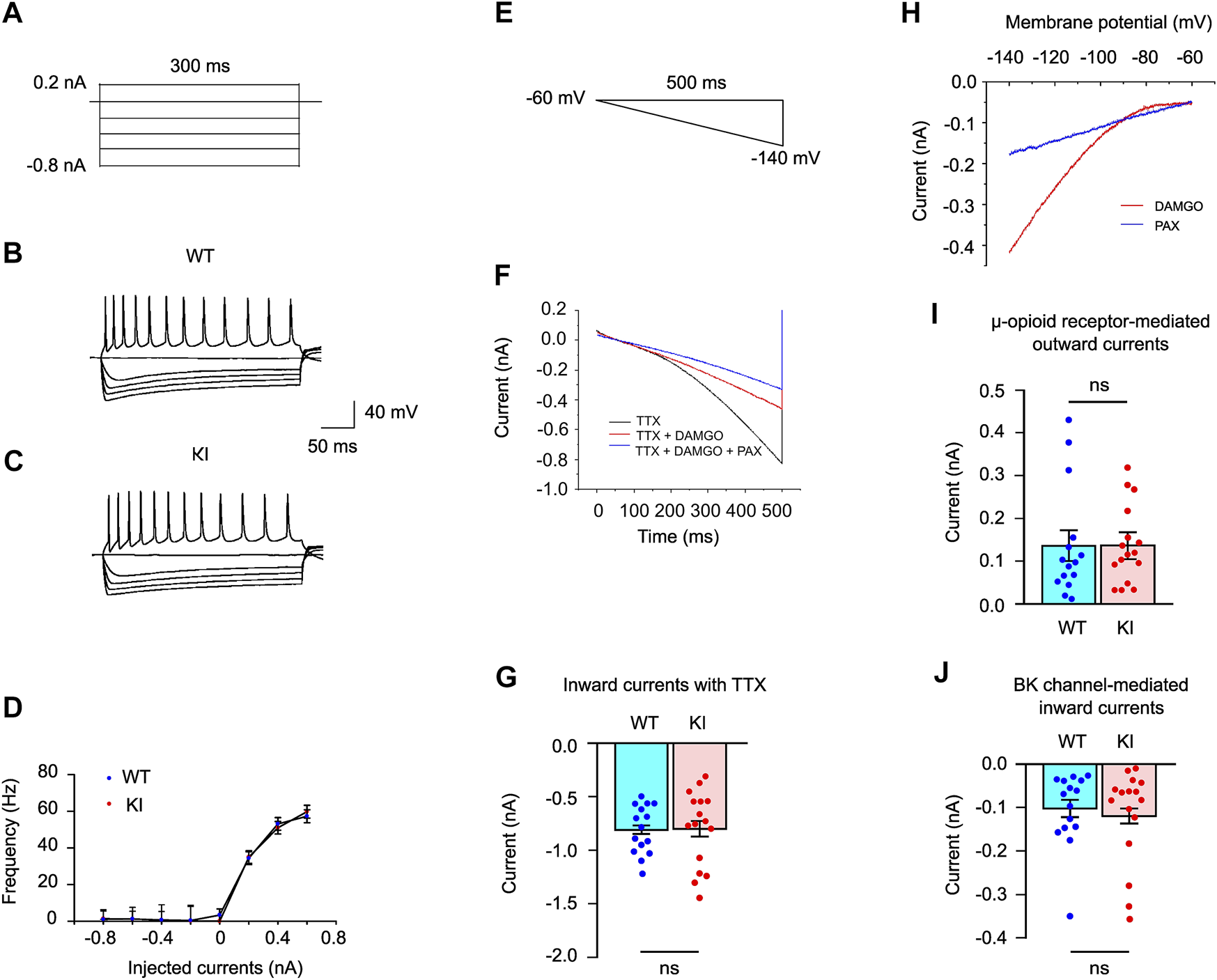

FIGURE 4. Whole-cell recording of the striatal ChIs. Representative current steps [−0.8–0.2 nA, (A)] and traces (B,C). There was no significant difference in the frequency-current relationship generated by the current steps (−0.8–0.6 nA) between WT and Dyt1 KI mice (D). Voltage ramp used for whole-cell voltage-clamp recording of ChIs (E). Representative traces of the electrophysiological responses of the striatal ChIs with 1 μM TTX, 1 μM TTX + 1 μM DAMGO, and 1 μM TTX + 1 μM DAMGO + 1 μM PAX (F). Measured inward currents at −140 mV of the hyperpolarized ChI membranes in WT and Dyt1 KI mice are plotted (G). The digitally subtracted currents with DAMGO and PAX treatments (H). There is no difference in the μ-opioid receptor-induced outward currents between WT and Dyt1 KI mice (I). There is no difference in the BK channel-mediated inward currents in WT and Dyt1 KI mice (J). The bar graphs in G, I, and J show means ± standard errors. ns, not significant.

Moreover, the frequency-current relationship showed that there was no significant alteration in the firing frequencies between WT and Dyt1 KI mice (0.2 nA injection; WT, 34.4 ± 3.5 Hz; KI, 35.0 ± 3.4 Hz; z = 0.32, p = 0.75; 0.4 nA injection; WT, 53.1 ± 3.4 Hz; KI, 51.0 ± 3.4 Hz; z = −0.97, p = 0.33; 0.6 nA injection; WT, 57.3 ± 3.5 Hz; KI, 59.8 ± 3.5 Hz; z = 0.46, p = 0.65; Figure 4D). These results suggest that the intrinsic excitability of the striatal ChIs is not altered in Dyt1 KI mice.

No Significant Alteration in the Inward Currents Induced by Hyperpolarization of the Striatal ChIs in Dyt1 KI Mice

Hyperpolarization of the membrane potential by voltage ramp induces an influx of cation ions through multiple voltage-gated ion channels and causes inward currents. Changes in opioid receptor signaling and BK channels have been reported in DYT1 mouse models (50). We decided to validate the findings in our KI mice. The membrane potential of the striatal ChIs was hyperpolarized by voltage ramp (−60 to −140 mV in 500 ms; Figure 4E) with 1 μM TTX (voltage-dependent Na+ channel blocker) in the brain slices from 4 WT (15 cells) and 5 Dyt1 KI mice (16 cells). The inward currents induced by the voltage ramp were recorded in whole-cell recording mode (Figure 4F). The recorded currents with TTX at −140 mV are shown in Figure 4G. There was no significant alteration in the inward currents with TTX between WT and Dyt1 KI mice [WT, −0.81 ± 0.04 nA; KI, −0.80 ± 0.07 nA; z = 0.12, p = 0.91; Figure 4G], suggesting that the overall hyperpolarization-activated ion channel function is normal in Dyt1 KI mice.

No Significant Alteration in the Striatal ChI Outward Currents Induced by Stimulation of μ-opioid Receptors in Dyt1 KI Mice

Stimulation of μ-opioid receptors produces outward currents by inducing the outflux of potassium ions (K+) and inhibiting the influx of calcium ions (Ca2+) through the G-protein-coupling mechanism (81). DAMGO stimulates μ-opioid receptors and attenuates the inward currents (82). DAMGO (μ-opioid receptor agonist; 1 μM) was used to analyze the property of μ-opioid receptors during the voltage ramp (50). DAMGO attenuated the inward currents of the hyperpolarized ChI membranes in WT and Dyt1 KI mice (Figures 4E,F). The DAMGO-induced outward currents were calculated by digital subtraction of the currents recorded with TTX and DAMGO from those with only TTX (Figure 4H). The currents recorded with TTX and DAMGO at −140 mV are shown in Figure 4I. There was no significant alteration in the μ-opioid receptor-induced outward currents between WT and Dyt1 KI mice [WT, 0.14 ± 0.04 nA; KI, 0.14 ± 0.03 nA; z = 0.0, p = 1.0; Figure 4I], suggesting normal μ-opioid receptor function in Dyt1 KI mice.

No Significant Alteration in the Striatal ChI Inward Current Through BK Channels in Dyt1 KI Mice

The opening of multiple ion channels induces hyperpolarization-activated inward currents in this recording condition. Among the ion channels, the flow of potassium ions through the BK channel is bidirectional, depending on the membrane potential (83, 84). In the depolarized membrane potential, the opening of the BK channel produces an outflux of potassium ions (K+). It causes outward currents during the falling phase of the action potential (85). When the membrane potential is hyperpolarized artificially by voltage ramp, the opening of the BK channel induces an influx of potassium ions (K+), which causes inward currents. Therefore, blocking the BK channel attenuates the inward currents of the artificially hyperpolarized membrane potential.

The BK channel activity was characterized by adding 1 μM PAX (BK channel blocker) during the voltage ramp. PAX blocked the BK channel and attenuated the BK-channel-derived inward currents (Figures 4E,F). The BK-channel-derived inward currents were calculated by digital subtraction of the currents recorded with TTX, DAMGO, and PAX from those with only TTX and DAMGO (Figure 4H). The currents recorded with TTX, DAMGO, and PAX at −140 mV are shown in Figure 4J. There was no significant alteration in the inward current through the BK channels between WT and Dyt1 KI mice [WT, −0.10 ± 0.02 nA; KI, −0.12 ± 0.02 nA; z = −0.65, p = 0.52; Figure 4J], suggesting normal ChI BK-channel function in Dyt1 KI mice.

No Significant Morphological Alteration in the Striatal ChI Dendrites in Dyt1 KI Mice

The dendrite structures and soma size of the recorded ChIs were examined by Sholl analysis (74). The morphology of the ChI dendrites was analyzed by digital tracing. Dorsal striatal ChIs were filled with biocytin during the whole-cell patch-clamp recording and labeled with streptavidin Alexa Fluor 594 (Figure 5A). The brain slices were stained with goat anti-ChAT/anti-goat IgG Alexa Fluor 488 to verify cholinergic identity (Figure 5B). The representative dendrites of the striatal ChIs labeled with biocytin/streptavidin Alexa Fluor 594 (Figures 5C,D) and their digitized dendrites are shown (Figures 5E,F). The dendritic branch numbers in 8 ChIs from 6 WT mice and 17 ChIs from 10 Dyt1 KI mice were quantified by Sholl analysis (74) and the ImageJ program (NIH). There was no significant alteration in the number of intersections between WT and Dyt1 KI mice (p > 0.05 at each comparable data point; Figure 5G). Moreover, there was no significant alteration in the length of the longest traced dendrites between WT and Dyt1 KI mice (length ± standard errors; WT: 125 ± 9 μm; KI: 116 ± 6 μm; p = 0.38; Figure 5G). There was no significant alteration in the soma size between WT and Dyt1 KI mice (cell body area ± standard errors; WT: 261 ± 27 μm2; KI: 281 ± 14 μm2; p = 0.47; Figure 5H). The results suggest no significant morphological alteration in the striatal ChI dendrites between WT and Dyt1 KI mice.

FIGURE 5
www.frontiersin.org

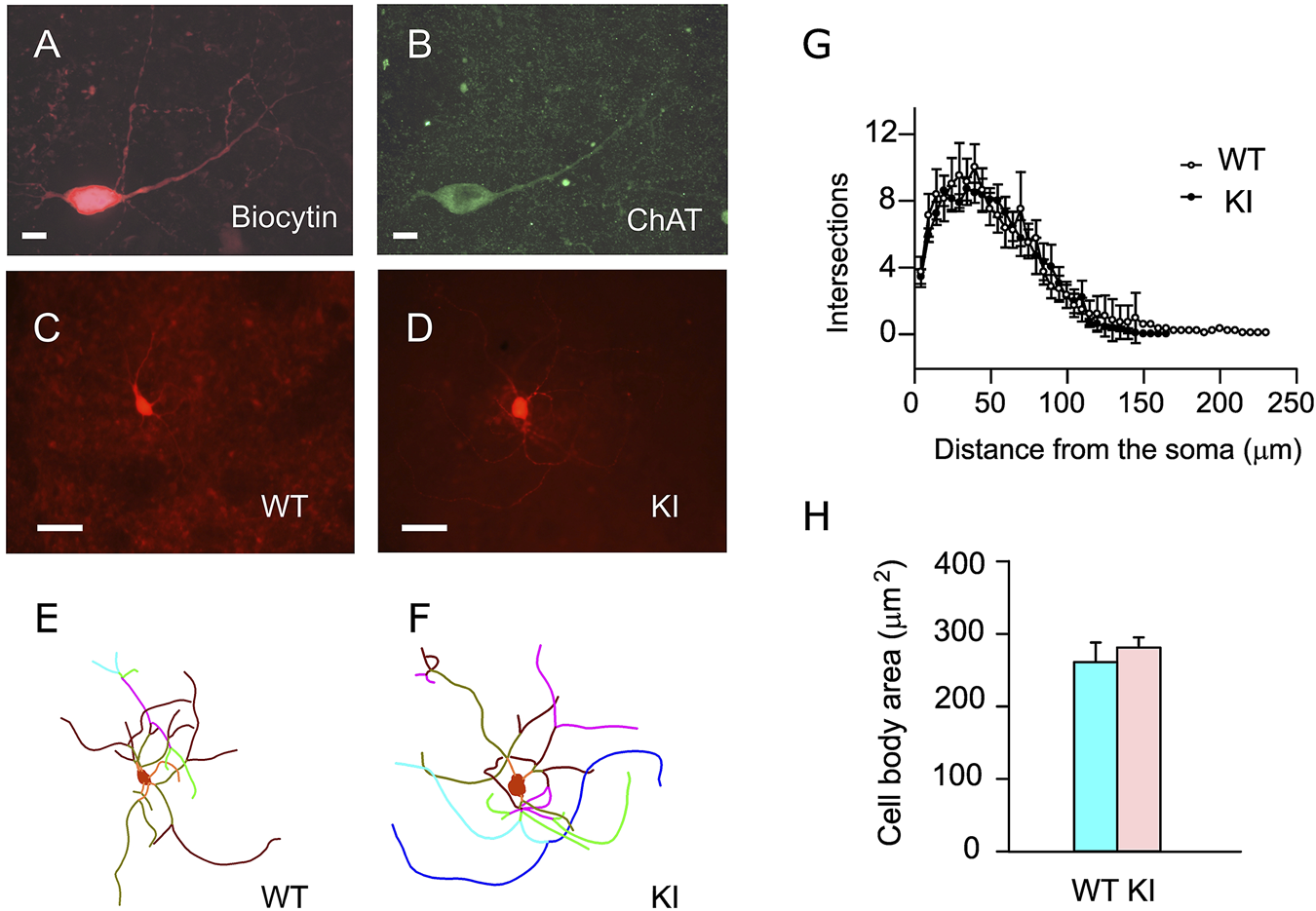

FIGURE 5. Morphological analysis of the striatal ChIs. Representative confocal microscopic images of the dorsal striatal ChIs stained with biocytin/streptavidin conjugate (A) and goat anti-ChAT antibody (B). The representative fluorescence images of the biocytin/streptavidin-stained ChIs (C,D) and their dendrites’ reconstructed traces (E,F) are shown. The intersection numbers at every Sholl ring (5 µm increment) from the center of the soma were plotted (means ± standard errors; (G)]. There was no significant alteration in the dendritic branch numbers and soma size (H) between WT and Dyt1 KI mice. The dots and error bars in (G) and the bars in (H) show means ± standard errors. Scale bars: (A,B), 10 μm; (C,D), 50 μm.

Discussion

TorsinA has been shown to be involved in multiple cellular processes, including protein quality control and secretion, calcium homeostasis, nuclear envelope integrity, nucleo-cytoplasmic transport, nucleo-cytoskeletal coupling, lipid metabolism, and synaptic transmission and plasticity (86). TorsinA is likely a molecular chaperon that processes various proteins, including the maturation of striatal D2R (37, 77) and D1R (38). Heterozygous Dyt1 KI mice, which have the corresponding mutation, show motor deficits and less reduced locomotor response to raclopride, a D2R antagonist. Dyt1 KI mice also show decreases in striatal D2R, D2R ligand binding, and torsinA levels. Since the striatal D2R reduction in Dyt1 KI mice was mainly derived from the striatal indirect pathway medium spiny neurons (iMSNs), it was not known whether D2R function on striatal ChIs is reduced as well or not. Here, the striatal ChIs in acute brain slices showed irregular spontaneous firing with decreased frequency in Dyt1 KI mice, whereas the intrinsic excitability was normal. Quinpirole, a D2R agonist, showed less inhibitory effect on the spontaneous ChI firing in Dyt1 KI mice, suggesting decreased D2R function on the striatal ChIs. Muscarine, a muscarinic receptor agonist, inhibited the ChI firing in Dyt1 KI mice, whereas trihexyphenidyl, a muscarinic acetylcholine receptor M1 antagonist, had no significant effect on the firing. Moreover, the resting membrane property, HCN channels, μ-opioid receptors, and BK channels of striatal ChIs were unchanged in Dyt1 KI mice. These results suggest that the irregular and low-frequency firing and decreased D2R function are the main alterations of striatal ChIs in Dyt1 KI mice. Consistent with the dystonic symptom caused by the side effect of D2R blockers, the striatal D2R defect on the striatal ChIs and iMSNs may contribute to the symptoms of DYT1 dystonia (13).

Paradoxical excitation to D2R activation was reported in several mouse and rat models of DYT1 dystonia (77-79, 87), Thap1 C54Y/+ knock-in mice (DYT6 dystonia model) and Gnal +/- KO mice (DYT25 dystonia model) (87). We did not find such a difference between WT and Dyt1 KI mice in two separate quinpirole experiments. We found less inhibitory response during quinpirole treatment, in contrast to the paradoxical excitation reported in the transgenic hMT mice (48), ChKO mice (35), transgenic ΔETorA rats (20), and Tor1a+/Δgag mice (49, 78, 79, 87). The mutations introduced in ChKO mice differ from the ΔGAG mutation commonly seen in most DYT1 dystonia patients and the Dyt1 KI mice. Transgenic hMT mice and ΔETorA rats might have non-physiological levels of torsinA and ectopic expression of the exogenous mutant torsinA. Abnormal motor behaviors have been reported in overexpression mouse models of human WT and mutant DYT1/TOR1A gene (88), highlighting the importance of using Dyt1 KI mice to study the pathophysiology of DYT1 dystonia (16). The discrepancy in paradoxical excitation between Tor1a+/Δgag mice and Dyt1 KI mice is not known and could be attributed to the difference in KI mouse construction, animal husbandry, recording configuration, sample size, statistical analysis methods, and other unknown contributing factors.

Enhanced functions of μ-opioid receptors and large-conductance calcium-activated potassium (BK) channels of the striatal ChIs were found in Tor1a heterozygous KO mice (50). The authors were able to show similarly enhanced μ-opioid receptor function on the firing rate of striatal ChIs in Tor1a+/Δgag KI mice. We did not find any significant difference in the functions of μ-opioid receptors and BK channels in the Dyt1 KI mice. Our results are consistent with the normal opioid binding in DYT1 patients (89). Since mutant torsinA still has low ATPase activity (90), which might be sufficient to maintain the normal function of μ-opioid receptors and BK channels in Dyt1 KI mice.

Mechanisms to produce a low frequency of the ChI firing in Dyt1 KI mice are not known. Here the intrinsic membrane property was normal in Dyt1 KI mice. Moreover, the quinpirole showed a less inhibitory effect through D2R on the ChIs in Dyt1 KI mice. These results suggest that the low frequency may be caused by a network effect rather than the intrinsic characteristic of the ChIs. Although striatal ChIs are pacemaker cells with spontaneous firing, they receive multiple inputs, including GABA from MSNs (56-59, 91). Since striatal D2R is decreased in Dyt1 KI mice, the D2-expressing MSNs, i.e., iMSNs, may increase the firing probability of releasing GABA and suppress the ChIs. On the other hand, striatal D1R is also decreased in Dyt1 KI mice. Therefore, the D1R-expressing MSNs, i.e., direct pathway medium spiny neurons (dMSNs), may reduce the release probability of GABA for suppressing the ChIs. Since the average ChI firing frequency is decreased in Dyt1 KI mice, the increased GABA inputs from iMSNs seem more dominant than reduced GABA inputs from dMSNs. This may be consistent with the electron microscopic observations that 47% of the indirect pathway terminals and 36% of the direct pathway terminals of the GABAergic neurons target striatal ChIs in rhesus monkeys (92). Increased GABA inputs from other neurons may also decrease the ChI firing frequency in Dyt1 KI mice; further characterization of GABAergic inputs to the ChIs, such as IPSCs, in Dyt1 KI mice is needed to elucidate the mechanism of the low and irregular frequency of ChIs.

Since acetylcholine released from the ChIs synchronously stimulates striatal dopamine release (67), the low frequency of the ChIs may cause striatal dopamine release deficits in Dyt1 KI mice. The basal level of striatal extracellular dopamine and amphetamine-stimulated dopamine release are consistently reduced in another KI mouse line of DYT1 dystonia (12). Suppression of the dopaminergic system is known to produce dystonic symptoms in humans. For example, dystonic symptoms are a well-known side effect of D2R antagonists used as antipsychotics (93). Dopamine synthesis deficits cause DYT5 dopa-responsive dystonia (94). The indirectly defected dopaminergic pathway may cause the dystonic symptoms in DYT1 dystonia.

Quinpirole showed a less inhibitory effect on the striatal ChIs in Dyt1 KI mice, suggesting decreased D2R function on the ChIs. This is consistent with the previous reports of decreased striatal D2R protein level (23), reduced binding of D2R radioligand [3H]YM-09151 to the striatum, and less reduced locomotor response to D2R antagonist raclopride in Dyt1 KI mice (38). However, the measured striatal D2R protein level and D2R radioligand binding are mainly derived from the striatal iMSNs. TorsinA is a molecular chaperon that contributes to the trafficking of polytopic membrane-bound proteins, including G protein-coupled receptors (95). Moreover, Dyt1 d2KO mice show striatal D2R maturation deficits (37). Since Dyt1 KI mice express decreased striatal torsinA levels (96), these results suggest that the partial loss of torsinA may reduce D2R in the ChIs as well as the iMSNs.

The mechanism of the irregular ChI firing or high CV in Dyt1 KI mice is unknown. The decreased D2R function in the ChIs itself causes less inhibition by dopamine and contributes to an increased ChI firing frequency. Therefore, the ChIs may receive both the increased GABA release from iMSNs and less inhibitory signal by dopamine. Combining these opposing signals may cause the irregular frequency of the ChIs in the KI mice. Since Dyt1 KI mice show irregular spontaneous firing in the cerebellar Purkinje cells (97), the heterozygous ∆GAG mutation seems to produce irregular firing in both ChIs and Purkinje cells. We found BK channel activity is increased in the KI Purkinje cells, which could underlie the irregular firing pattern (97). Here, we demonstrated no change of BK channel activity in the KI ChIs. The ionic mechanisms responsible for the altered ChI firing regularity remain to be investigated.

The spontaneous firing was inhibited by muscarine in WT and Dyt1 KI mice, suggesting normal inhibitory function through M2 on the ChIs in Dyt1 KI mice. The cholinergic neuron-specific torsinA knockout (Ch2KO) mice consistently show normal inhibitory responses (36). However, the striatal ChIs in cholinergic neuron-specific torsinA knockout (ChKO) mice with Neo cassette show no reaction to muscarine (35). The normal M2 function may also decrease the firing frequency of the ChIs if the striatal cholinergic tone is increased in the Dyt1 KI mice, as shown in another line of KI mice (79). The mechanism to produce a high cholinergic tone is still not known. It may relate to the irregular firing of ChIs or the partial loss of ChIs in Dyt1 KI mice (26). The irregular and low-frequency firing of striatal ChIs in Dyt1 KI mice seems consistent with the high striatal acetylcholine tone in the previous reports (79). Further analysis of the striatal acetylcholine overflow mechanism will elucidate the pathophysiology of DYT1 dystonia.

The ChIs in both WT and Dyt1 KI mice did not significantly respond to THP, consistent with the lack of expression of M1-type stimulatory muscarinic acetylcholine receptors on the striatal ChIs (98, 99). THP likely affected other neurons, such as MSNs in the corticostriatal pathway. Dyt1 KI mice exhibit corticostriatal LTD deficits, abnormal muscle contraction, motor deficits, and impaired motor-skill transfer (8, 12, 23, 25, 100). These deficits are ameliorated by THP treatment (23, 24, 26), suggesting functional alteration of cholinergic or its related circuits in Dyt1 KI mice. As discussed above, the decreased frequency of the ChIs may be caused indirectly by decreased D2R on iMSNs. MSNs project GABAergic axons to ChIs and inhibit the ChI firing. The iMSNs with decreased D2R may increase GABA release to ChIs and suppress the firing of the ChIs in Dyt1 KI mice. THP may also intervene in this pathway and attenuate the symptoms by recovering the ChI firing. Further analysis of the network effect of these neurons will elucidate the contribution of each pathway to producing the motor deficits.

DYT1 dystonia is known as a circuit disorder rather than a neurodegenerative disorder. There is no overt neurodegeneration in DYT1 dystonia patients (1) and Dyt1 KI mice (8). Consistently, cerebral cortex-specific Dyt1 conditional KO mice do not show overt developmental alteration in cerebral cortex neurons (31). However, there is a slight morphological alteration in the cerebellar Purkinje cells in Dyt1 KI mice and Purkinje cell-specific Dyt1 conditional KO mice (101). The size of the central nucleus of the amygdala is significantly reduced in the KI mice (69). Subtle morphological alterations in the cerebellar Purkinje cells were also reported in another line of KI mice (102). Moreover, the KI mice show a reduced ratio of axo-spinous to axo-dendritic synaptic inputs to MSNs from glutamatergic and dopaminergic sources (103). We found no significant alteration in dendritic branch numbers, suggesting that local connection with the striatal ChIs is mostly normal in Dyt1 KI mice. Since the striatal ChIs show abnormal firing patterns, the electrophysiological alteration may not be caused by overt local neuronal connection changes. However, Dyt1 KI mice have a slightly decreased number of dorsolateral striatal ChIs (26). The normal dendrite of the examined striatal ChIs does not exclude the possibility that a few ChIs with abnormal structure were already degenerated or eliminated during the development. The relationship between functional alteration and neuronal connections remains to be further examined.

Data Availability Statement

The datasets presented in this article are not readily available because of the lack of a public electrophysiological data depository. Requests to access the datasets should be directed to the corresponding authors.

Ethics Statement

The animal study was reviewed and approved by the Institutional Animal Care and Use Committees of the University of Florida.

Author Contributions

HX, FY, and YLi designed the experiments. HX, FY, AW, RT-M, and YLu performed the experiments. HX, FY, AW, and YLI analyzed the data. FY wrote the manuscript. HX, AW, and YLI edited the manuscript.

Funding

This work was supported by Tyler’s Hope for a Dystonia Cure, Inc., “Mini-Moonshot” Fixel-MBI Pilot Grant Mechanism for Dystonia and Related Disorders, National Institutes of Health (NS54246, NS72782, NS75012, NS82244, NS111498, and NS118397), startup funds Department of Neurology (UF), Bachmann-Strauss Dystonia and Parkinson Foundation, Inc. and the Department of Defence (W81XWH1810099 and W81XWH2110198). FY, HX, and YL were partially supported by the Office of the Assistant Secretary of Defense for Health Affairs through the Peer-Reviewed Medical Research Program Discovery Award.

Author Disclaimer

Opinions, interpretations, conclusion, and recommendations are those of the author and are not necessarily endorsed by the Department of Defense.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

We thank the animal care staff, Douglas E. Smith, Kelly M. Dexter, Jessica Artille, Jareisha Vickers, Aysha Awal, and other undergraduate students for their technical assistance.

Abbreviations

ACh, acetylcholine; AChE, acetylcholinesterase; ACSF, artificial cerebrospinal fluid; BK channel, large-conductance calcium-activated potassium channel; BSA, bovine serum albumin; ChAT, choline acetyltransferase; ChKO mice, cholinergic neuron-specific Dyt1 conditional knockout mice; ChI, cholinergic interneuron; CV, coefficient of variation; dMSNs, direct pathway medium spiny neurons; D1R, dopamine receptor 1; D2R, dopamine receptor 2; DF, degrees of freedom; Dlx-CKO mice, forebrain-specific conditional knockout of torsinA mice; Dyt1 KI mice, Dyt1 ΔGAG heterozygous knock-in mice; HCN channels, hyperpolarization-activated cyclic nucleotide-gated channels; iMSNs, indirect pathway medium spiny neurons; IH, hyperpolarization and cyclic nucleotide activated cation current; IR, input resistance; ISI, interspike intervals; KO, knockout; LTD, long-term depression; MSN, medium spiny neuron; PB, phosphate buffer; PBS, phosphate-buffered saline; RMP, resting membrane potential; SD, standard deviations; THP, trihexyphenidyl; TTX, tetrodotoxin; WT, wild-type
