Case Series: Dystonia with multiple sclerosis and neuromyelitis optica

Introduction

Dystonia comprises a heterogenous group of movement abnormalities characterized by sustained or intermittent muscle contractions causing abnormal postures, repetitive movements and postures, or both [1]. MS and NMO are inflammatory conditions of the central nervous system caused by immune dysregulation. The clinical diagnosis of MS requires the dissemination of lesions in space and time [2]. Diagnostic criteria for NMO have been established for individuals with and without NMO-IgG antibody seropositivity [3]. Although dystonia has been reported in people with MS, the clinical-anatomic relationship between the body part affected by dystonia and the location of demyelinating plaques in people with either MS or NMO has not been well-described [4].

The primary goal of this case series is to determine the relationship between the location of demyelinating plaques in the brain or spinal cord and body part affected by dystonia. Our secondary goal is to report the response to botulinum toxin. We include patients with dystonia and either MS or NMO that were seen at the Washington University Movement clinic between 1 January 1996, and 1 August 2022.

Methods

A retrospective chart review was performed. All clinical data from the Washington University Movement Disorders Center had been stored in an electronic medical record system implemented in 1995. We searched all outpatient records collected between 1 January 1996 and 1 April 2022 for the diagnosis of dystonia and MS using the McDonald Diagnostic Criteria [2, 5] and the International Consensus for NMO Spectrum Disorders [6]. When available, we recorded age at diagnosis of MS or NMO, age at onset of dystonia, relevant family history, past neuroleptic exposure, neurological examination, botulinum toxin used for treatment and response to injection. In addition, we reviewed available brain and spine MRIs, and neuroradiology reports where original imaging was unavailable. All patients with the diagnosis of MS had evidence of periventricular, juxtacortical, or infratentorial lesions. Approval for this study was obtained from Washington University Institutional Review Board (IRB ID #:202201182).

Cases

We found 14 patients with dystonia and MS or NMO between ages 13 to 49 (average age 32, Table 1). In two patients (3 and 7), dystonia began at the onset of MS, and in patient 10, bilateral arm dystonia occurred 1 year prior to other MS manifestations. Twelve patients had MS and two had NMO (5 and 6), as diagnosed by their primary neurologist (1, 3, and 9) or by a neuroimmunologist/MS specialist. Dystonia was diagnosed by a movement disorders specialist. Types of dystonia included focal (n = 8), multifocal (n = 5), and segmental (n = 1). No individual had a family history of dystonia. Of note, patient 4 had a 1 year exposure to an anti-dopaminergic agent prior to the onset of dystonia but had MS for 18 years prior to dystonia onset. This was discontinued at the time of diagnosis of dystonia but the dystonia did not improve over the next 15 years. For all participants, we summarized the regions of demyelination identified on MRI (Figure 1). Table 2 shows the Tsui torticollis rating score for those patients with cervical dystonia (before and after Botulinum toxin treatment). 2 of 7 cervical dystonia patients did not have Tsui torticollis rating score performed. In addition, it shows the treatment including units of botulinum toxin type A, the number of chemodenervation sessions, and the response to treatment.

TABLE 1. Demographic and clinical characteristics of patients.

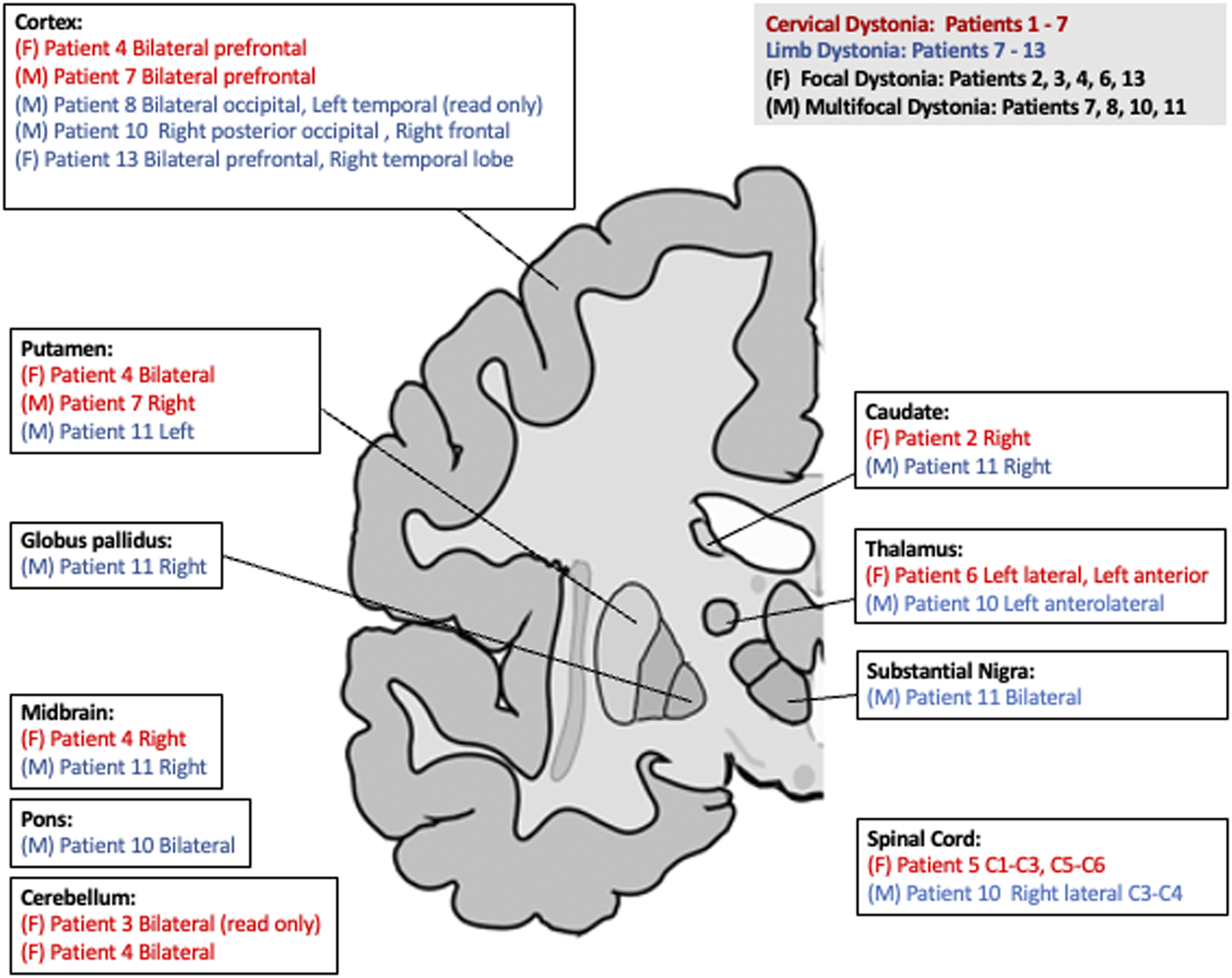

FIGURE 1. Simplified representation highlighting basal ganglia and critical brain regions of the corticostriato- thalamo circuit. Red color represents cervical dystonia, while blue represents limb dystonia. (F) is for focal dystonia. (M) is for multifocal. (L) Represents left and (R) represents right.

TABLE 2. History of MS/NMO, dystonia treatment, Tsui torticollis rating scale, and response to Botulinum treatment.

Discussion

We present a case series of 14 patients who had dystonia secondary to multiple sclerosis and NMO. This is the most extensive case series to date with clinical presentation and MRI imaging. The locations of the demyelinating lesions were variable and included the caudate and putamen as well as thalamus, cortex, brainstem, and cerebellum, which supports the idea that disruption in either the cortico-ponto-cerebello-thalamo-cortical or the cortico-basal ganglia-thalamo-cortical could lead to dystonia. We also reported treatment responses from botulinum injections.

The extant relevant literature includes few cases but does provide some clinical-anatomic correlations of secondary dystonias associated with demyelinating disease. One patient with hemidystonia involving the left upper and lower extremities was attributed to demyelinating plaques in the posterolateral spine at C2 and C3 [7]. Another report noted blepharospasm in two patients with cortical parietal lobe lesions that improved after IV methylprednisolone [8]. To date, the largest case series published describes nine patients with dystonia and MS, of which three had lesions in the basal ganglia [9]. A cohort of seven people with dystonia and MS had a variety of demyelinating plaques found most frequently in the thalamus [10].

Both generalized dystonia from genetic causes and isolated, idiopathic cervical dystonia could be due to disruption in the cortico-ponto-cerebello-thalamo-cortical or the cortico-basal ganglia-thalamo-cortical pathways [11, 12]. Interestingly, our patients with dystonia and either MS or NMO also had demyelinating disease involving the basal ganglia, thalamus, midbrain, cerebellum, or the spinal cord supporting the notion that this form of secondary dystonia may share dysfunction of similar brain networks as idiopathic or genetic dystonia. Specifically, we found two patients with cerebellar lesions, four with lesions in basal ganglia, and two with thalamic lesions. Two cases with cervical dystonia had lesions in the cerebellum. In addition, all 4 patients with dystonia in either upper or lower extremities on both sides, had plaques located in more than one area. Of note, one person (4) with cervical dystonia had lesions in multiple brain areas including bilateral putamen, bilateral prefrontal lesions, right posterior midbrain, and right cerebellum, but we could not identify which of these lesions specifically contributed to dystonia. We did not know the temporal relationship between the onset of these plaques and the onset of dystonia which could have provided stronger evidence of the clinical pathologic relationships in these cases. Anatomical or functional lesions may fall below the sensitivity of MRI detection so visualization on MR imaging likely does not reveal all relevant pathology.

Dystonia, in general, has traditionally been regarded as dysfunction of the basal ganglia, implicating the cortico-basal ganglia-thalmo-cortical circuity. Clinical anatomic studies initially focused on secondary dystonias found defects of basal ganglia nuclei. For example, discrete focal lesions often involving the putamen or striatum may accompany dystonia [13–15]. Resting state functional connectivity also identifies dysfunction of specific basal ganglia networks [16]. When compared to healthy volunteers, FDG-PET studies have shown abnormal activity of posterior putamen, globus pallidus, cerebellum, and supplementary motor areas in patients with dystonia [17].

The cerebellum and related networks may also play a role in the pathophysiology of dystonia suggesting dysfunction of the cortico-ponto-cerebello-thalmo-cortical loop [18, 19]. Patients with secondary focal neck dystonia often have lesions in the cerebellum [20–22]. The cerebellum plays a role in networks involving the striatum so these are not functionally independent structures; regions of cerebellum project to the cortex via ventrolateral thalamus and connect to the striatum via intralaminar thalamic nuclei [23]. Disruption of cerebellum circuits have been associated with motor manifestation of dystonia [24]. Functional magnetic resonance imaging studies demonstrate abnormal activation in the cerebellum during tasks of blepharospasm and writer’s cramps [25–27]. Moreover, histopathological studies from autopsy of cervical dystonia patients and blepharospasm patients found loss of Purkinje neurons in the cerebellum [28–30].

Idiopathic dystonia is often treated with botulinum toxin with good response [31–34]. However, few studies have reported the efficacy of treating dystonia secondary to demyelinating diseases. Moreover, there are no randomized clinical trials of any treatments for dystonia in MS. In 8 of 12 of our patients with plaques involving the cortico-striato-thalamo tract, clinical observations suggest that botulinum toxin provided partial to good clinical benefit. Thus dystonia related to MS or NMO may respond to botulinum toxin, similar to isolated, idiopathic dystonia. We recognize that this is not a treatment study with our findings being limited to clinical observations and self-reports. However, this is similar to the previously reported 50%–90% of patients with substantial improvement of dystonic symptoms and dystonia-related pain [35–38]. Failure of response to botulinum toxin may also be due to failure to find an optimal dose without side effects (i.e., head drop in patient 9) which may reflect exacerbation of antecedent weakness related to MS. These limited observations would support at least a trial of treatment with botulinum toxin in secondary cases of dystonia attributed to MS or NMO lesion if no contraindications exist.

Improved dystonia symptoms after corticosteroid treatment could suggest that the inflammatory process in MS or NMO contributed to dystonia [39]. In our case series, we do not have sufficient evidence to address this. Although some patients received corticosteroids, we do not have imaging at the time of symptom onset that demonstrates contrast enhancement and active demyelination in regions that may lead to dystonia if damaged. We also do not have evidence that cervical dystonia improves after MS treatment, as all these patients were sent to be evaluated in the movement disorder clinic due to dystonia that was not alleviated by MS treatment, reflecting the sampling biases of this report.

Conclusion

Demyelinating lesions associated with MS or NMO involving either the cortico-striato-thalamo or the cerebello-cortical-loop network circuit can contribute to dystonia. The involvement of different brain and spinal regions matches that found with other forms of secondary dystonia (i.e., stroke), and relates to dysfunction of brain networks found in idiopathic or genetic forms of dystonia. These cases reveal dysfunction or anatomic lesions of motor networks involving the cortex, basal ganglia, midbrain, thalamus, and cerebellum. Treatment of this form of secondary dystonia in the setting of MS and NMO seems to respond to botulinum toxin injections similar to idiopathic, isolated focal and segmental dystonia.
